bevel gear

The main features of Bevel gears manufactured by Richge are:

Shape and structure: The tooth surface of the bevel gear is conical, and the gear presents different angles at the contact points of the two gears, which is suitable for transmitting the power of the relative Angle change.

Transmission Angle: Often used between two intersecting axes, the common Angle is 90 degrees, but it can also be designed for other angles.

Transmission function: The bevel gear can effectively transfer the rotating motion from one shaft to the other shaft that crosses with it, changing the direction of power transmission.

Efficient transmission: The transmission efficiency of bevel gear is high, which can efficiently transfer power and reduce energy loss.

Smooth transmission: Bevel gears can achieve smooth power transmission, reduce vibration and noise, suitable for mechanical systems that require smooth operation.

Wide applicability: Bevel gears are widely used in industrial equipment that needs to change the direction of rotation and transmit high torque, such as automotive transmission systems, machine tools, aviation equipment, etc.

High load capacity: Suitable for applications with large loads and large torques.

Lower noise: When spiral teeth are used, the contact is smoother, which helps to reduce noise and vibration, and is suitable for applications with low noise requirements.

Flexibility: Can work at multiple angles, suitable for mechanical systems that need to change direction.

Design considerations for the Bevel gears manufactured by Richge:

Tooth shape selection: The tooth shape of the gear (such as straight, helical or offset helical teeth) directly affects the transmission efficiency, load capacity and noise level.

Material: Commonly used high-strength steel, suitable for bearing large loads and has good durability and corrosion resistance.

Gear ratio: The gear ratio determines the output speed and torque, and the difference in the number of teeth will affect the transmission efficiency and load capacity.

Lubrication: Lubricating oil can effectively reduce friction between gears, reduce wear, and extend service life.

Conclusion:

Bevel gears from Richge have important applications in a variety of mechanical systems, especially where the direction of transmission needs to be changed. By optimizing the selection of gear types, teeth and materials, bevel gears can efficiently transfer power and meet specific working requirements, and are widely used in industrial equipment, improving the reliability and efficiency of the transmission system.

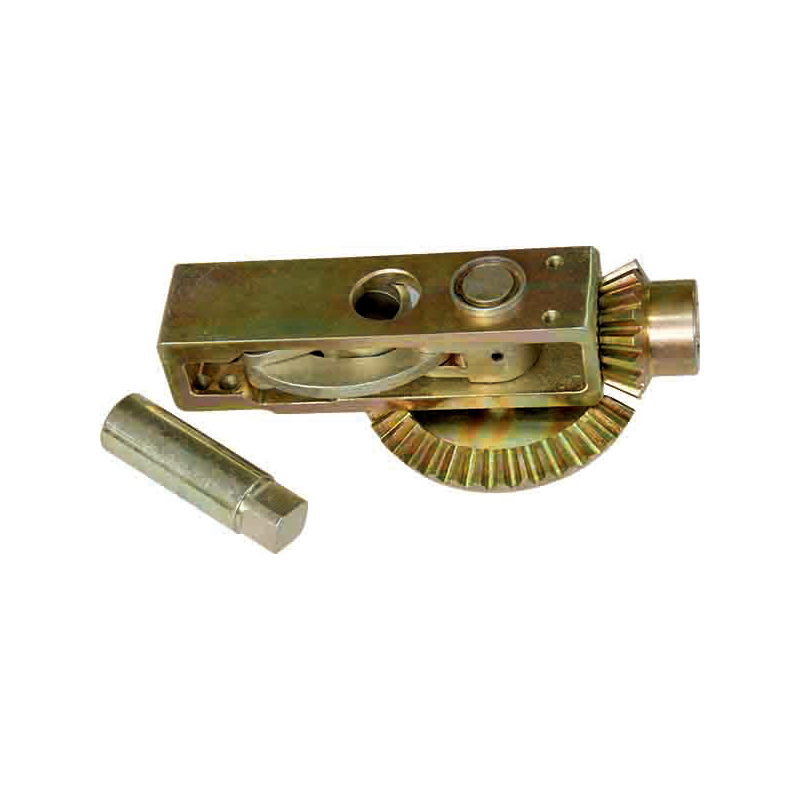

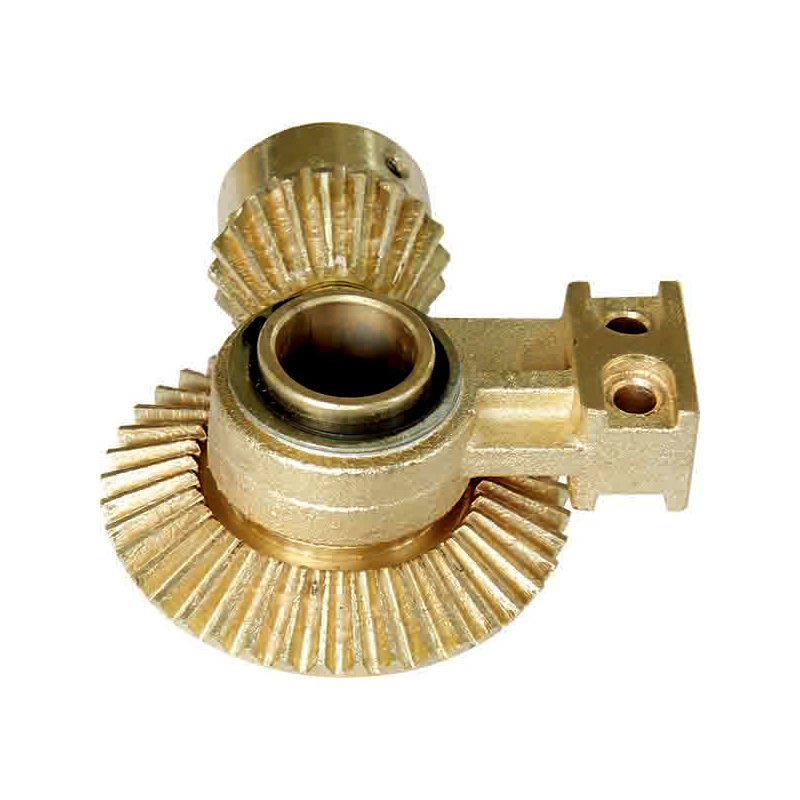

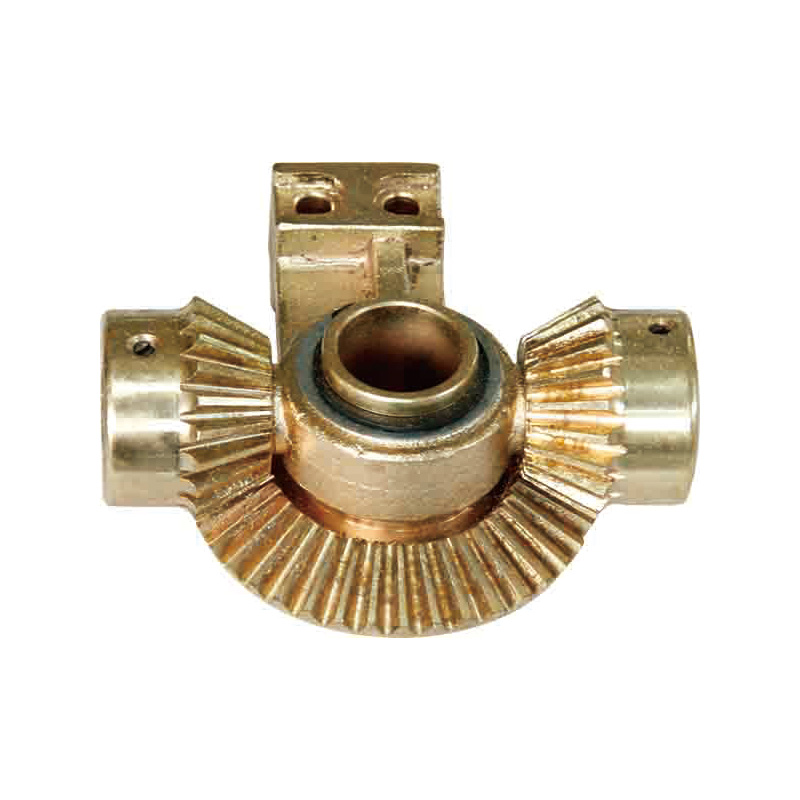

Bevel gear assembly model and installation dimensions

5XS.245.001.1
5XS.245.001.2
5XS.245.001.4
5XS.245.002.1

Bevel gear mechanism installation dimensions
