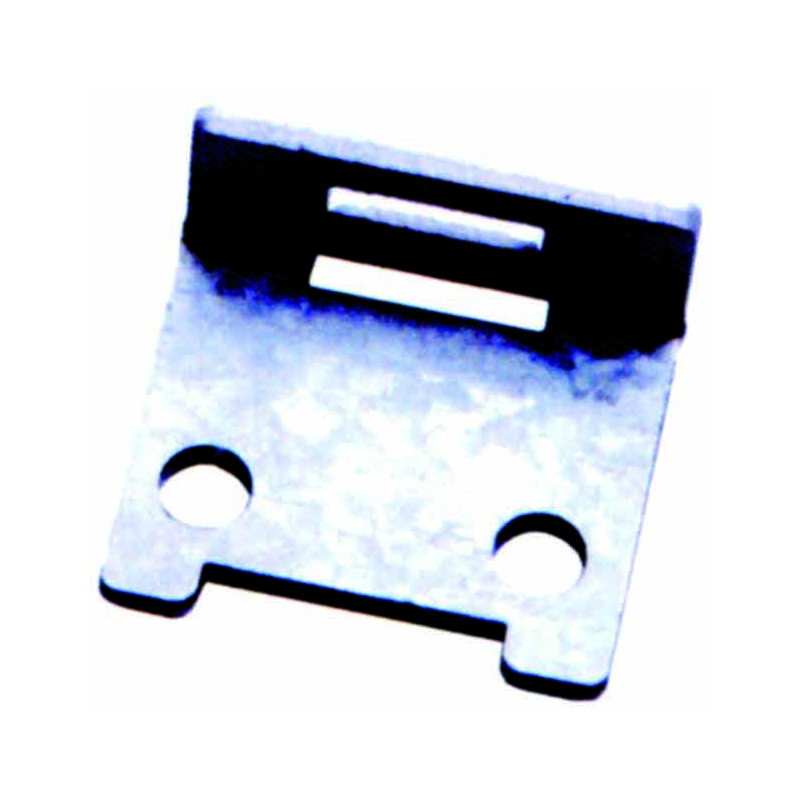

Guide Frame Assembly for Switchgear

Model:RQG-8PT100CT 8PT150CT 8PT200CT 8PT300CT 8PT400CT 8PT500CT

Product Introduction: Guide Frame Assembly for Switchgear The Guide Frame Assembly for Switchgear is an essential structural component that ensures the smooth and precise operation of switchgear drawers and compartments. This assembly is designed to align, guide, and secure the moving parts of switchgear systems, particularly in withdrawable units. It provides stability during insertion and withdrawal of circuit breakers or other functional modules, minimizing operational risks such as misalignment or mechanical jamming. Manufactured from high-grade materials such as stainless steel or galvanized metal, the frame offers exceptional resistance to corrosion and mechanical wear, which extends the lifespan of the switchgear. Some assemblies feature pre-drilled holes or adjustment slots to accommodate easy installation and fine-tuning. This ensures compatibility with various switchgear brands and modular units, improving assembly flexibility. The smooth sliding mechanism integrated into the guide frame helps in maintaining consistent performance even under frequent operational cycles.

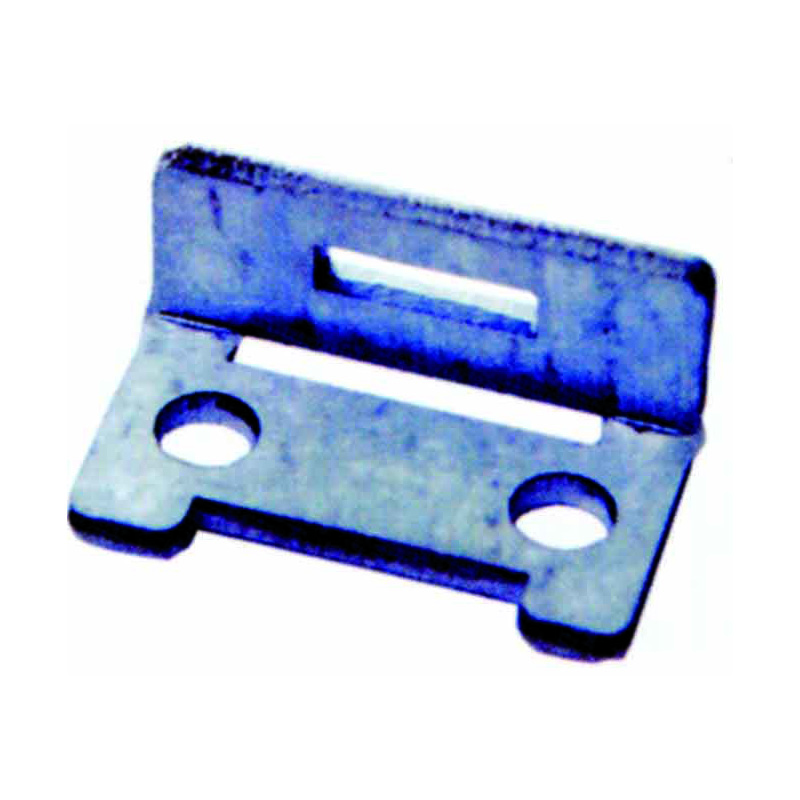

Guide Frame Assembly for Switchgear


The Guide Frame Assembly plays a pivotal role in medium and low-voltage switchgear systems. Key applications include:

1.Withdrawable Circuit Breakers: Ensures smooth insertion and extraction for maintenance or operational purposes.

2.Control Units and Protection Relays: Helps position and align essential modules with precision, reducing operational downtime.

3.Modular Compartments: Provides robust support for heavy switchgear modules, preventing deformation during mechanical movements.

4.Interlocking Systems: Some designs integrate interlock slots to enhance operational safety by ensuring that components are only accessible under safe conditions.

This component is widely used in industrial plants, power distribution facilities, data centers, and renewable energy installations, where switchgear reliability and smooth operability are critical. The Guide Frame Assembly ensures enhanced efficiency, lower maintenance, and improved safety, contributing to a streamlined and secure electrical infrastructure.
