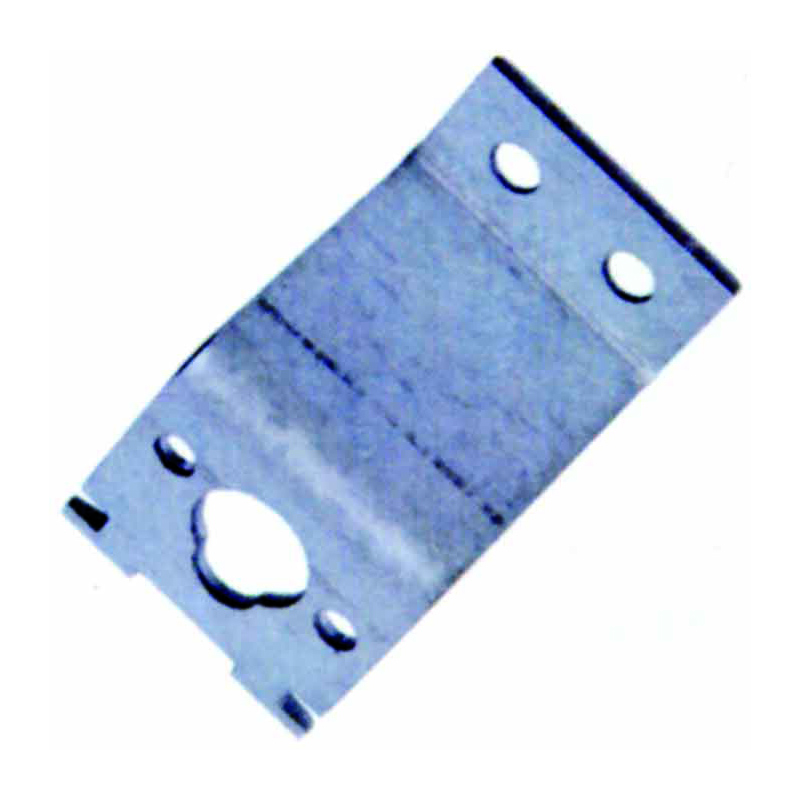

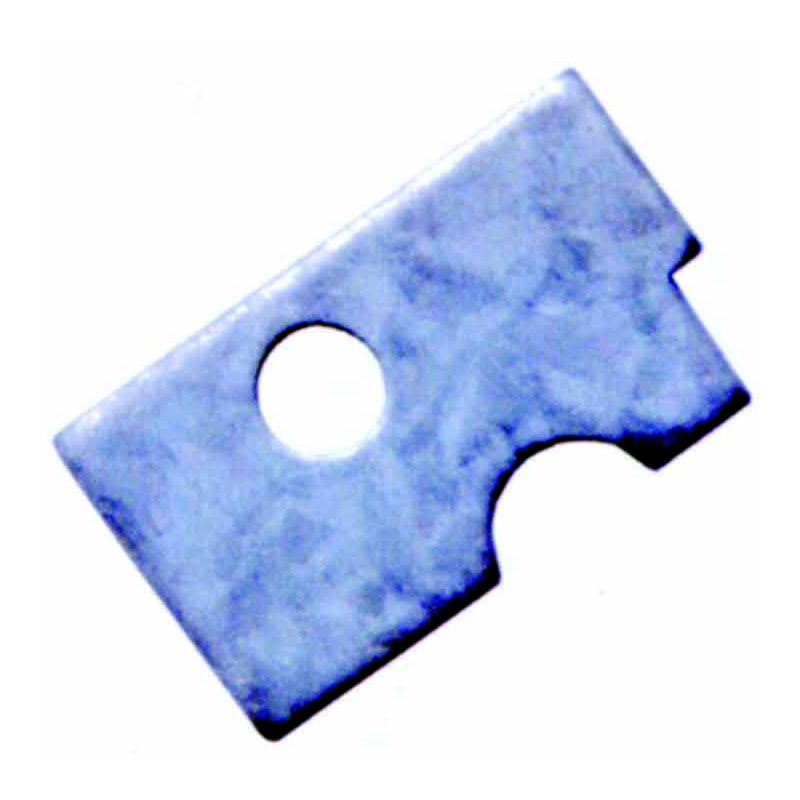

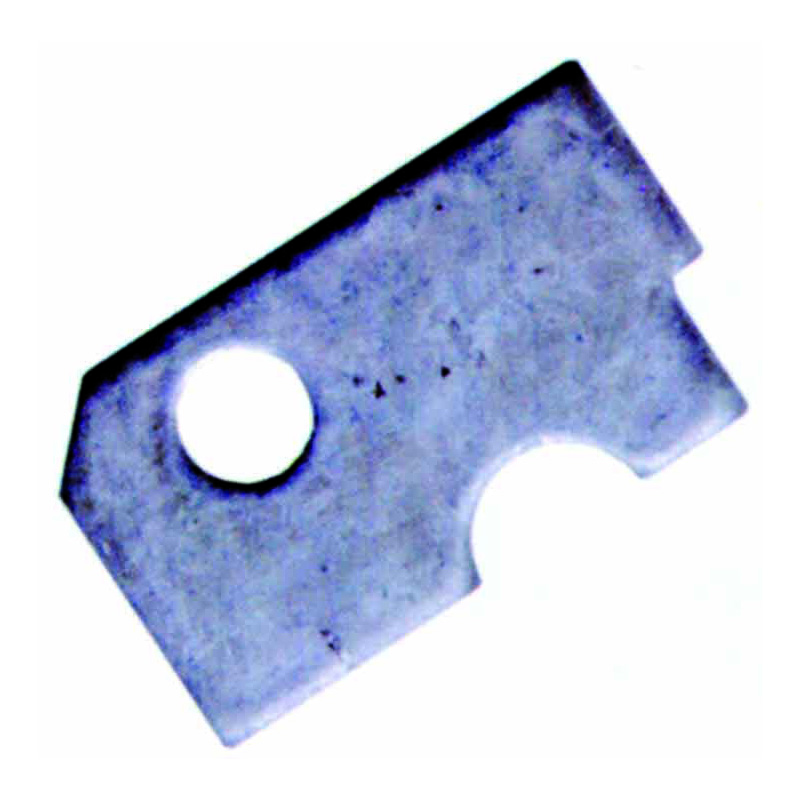

Switchgear bearing plate

Model:RQG-8PT25491 8PT25482 8PT25480(00)

Switchgear Bearing Plate – Product Details and Applications The Switchgear Bearing Plate is an essential structural component designed to support and stabilize rotating or sliding elements within switchgear systems. Typically made from high-strength materials such as stainless steel or coated aluminum alloys, these plates ensure reliable mechanical performance under extreme electrical and environmental conditions. They are crafted with precision to resist corrosion, mechanical stress, and wear over time, contributing to the durability and smooth operation of the switchgear.

Key Features:

1.High Load Capacity: Designed to bear substantial mechanical loads, preventing sagging or misalignment of components.

2.Anti-Corrosive Coating: Treated with special coatings to withstand moisture, dust, and chemical exposure, suitable for indoor and outdoor installations.

3.Smooth Surface Finish: Precision-machined surfaces reduce friction and promote smooth movement, particularly for drawers and sliding mechanisms.

4.Versatile Design: Available in various shapes and sizes, tailored to fit medium- and low-voltage switchgear configurations.

5.Thermal Stability: Maintains performance at both low and high temperatures, ensuring operational safety even in harsh environments.

6.Mounting Holes: Pre-drilled holes allow easy assembly with bolts or screws, enhancing installation efficiency.

Applications:

Drawer Systems: Used in withdrawable switchgear drawers, the bearing plate ensures smooth and stable sliding for easy access to circuit breakers or control modules.

Busbar Assemblies: Provides support for rotating busbar connectors or assemblies, ensuring consistent electrical connections.

Interlocking Mechanisms: Enhances the movement and alignment of mechanical interlocks, contributing to safer switchgear operation by preventing accidental engagement or disengagement of components.

Cable Management: Supports cable routing trays within the switchgear cabinet, keeping cables organized and protected from mechanical damage.

Shock Absorption: Acts as a vibration-damping element in installations prone to mechanical shocks, protecting internal components from wear and tear.

The Switchgear Bearing Plate plays a pivotal role in ensuring the smooth, reliable, and safe operation of electrical systems. Its integration into various parts of the switchgear, such as drawers and busbar assemblies, enhances both performance and longevity, making it a critical part of high-performance switchgear designs.
