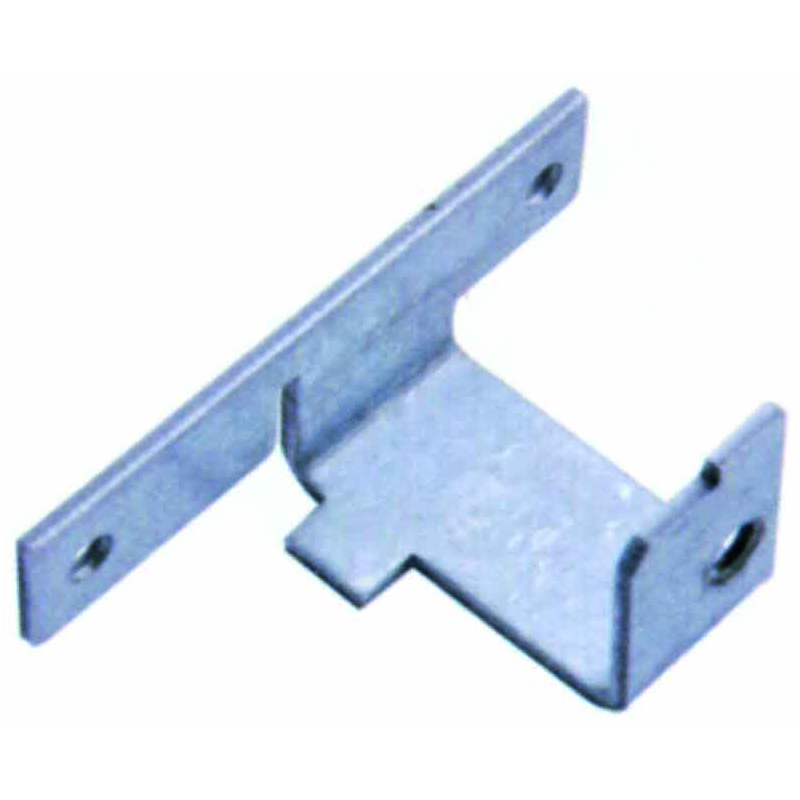

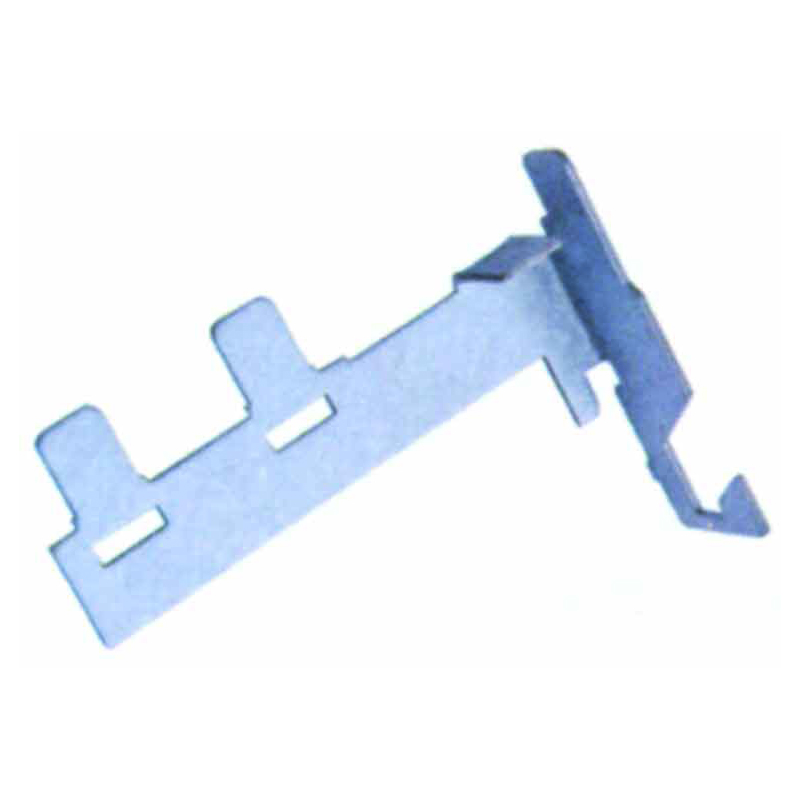

Switchgear drawer interlocking plate

Product Details

Material: Interlocking plates are usually made of high-strength metals such as stainless steel or treated aluminum, offering corrosion resistance and durability under high mechanical stress. Some variants use special coatings (like zinc plating) for added protection in humid or corrosive environments.

Design: These plates feature precision-cut slots, holes, or notches to integrate seamlessly with locking pins, spring-loaded mechanisms, or latching systems. They are designed for smooth and reliable operation, ensuring minimal wear and tear over repeated cycles.

Size and Compatibility: They come in various dimensions to match the specific switchgear models and configurations, ensuring compatibility with both fixed and withdrawable units. Custom designs may also be available for specialized applications.

Compliance: Many interlocking plates are built according to industry standards (IEC, ANSI, or NEMA) to meet electrical safety regulations.

Applications

1.Safety Interlocking: The primary function of the interlocking plate is to prevent unsafe conditions, such as operating the circuit breaker while the drawer is partially open. It ensures drawers remain securely locked during critical switching operations.

2.Maintenance Operations: During routine inspections or repairs, the interlocking plate facilitates controlled access to internal switchgear components by locking drawers in their designated positions, preventing accidental movements.

3.Energy Isolation: In some configurations, the interlocking plate works in tandem with grounding switches to block unauthorized operation during maintenance, ensuring operator safety by isolating live components.

4.Multi-Unit Coordination: In complex switchgear assemblies, multiple interlocking plates coordinate across various drawers or modules, ensuring synchronization between different switching actions.

The Switchgear Drawer Interlocking Plate plays a crucial role in preventing human errors, protecting equipment, and maintaining the smooth operation of power distribution systems. Its reliability and precision are essential in industrial facilities, data centers, and utility stations, where uninterrupted power and safety are of paramount importance.
