Switchgear mechanism support

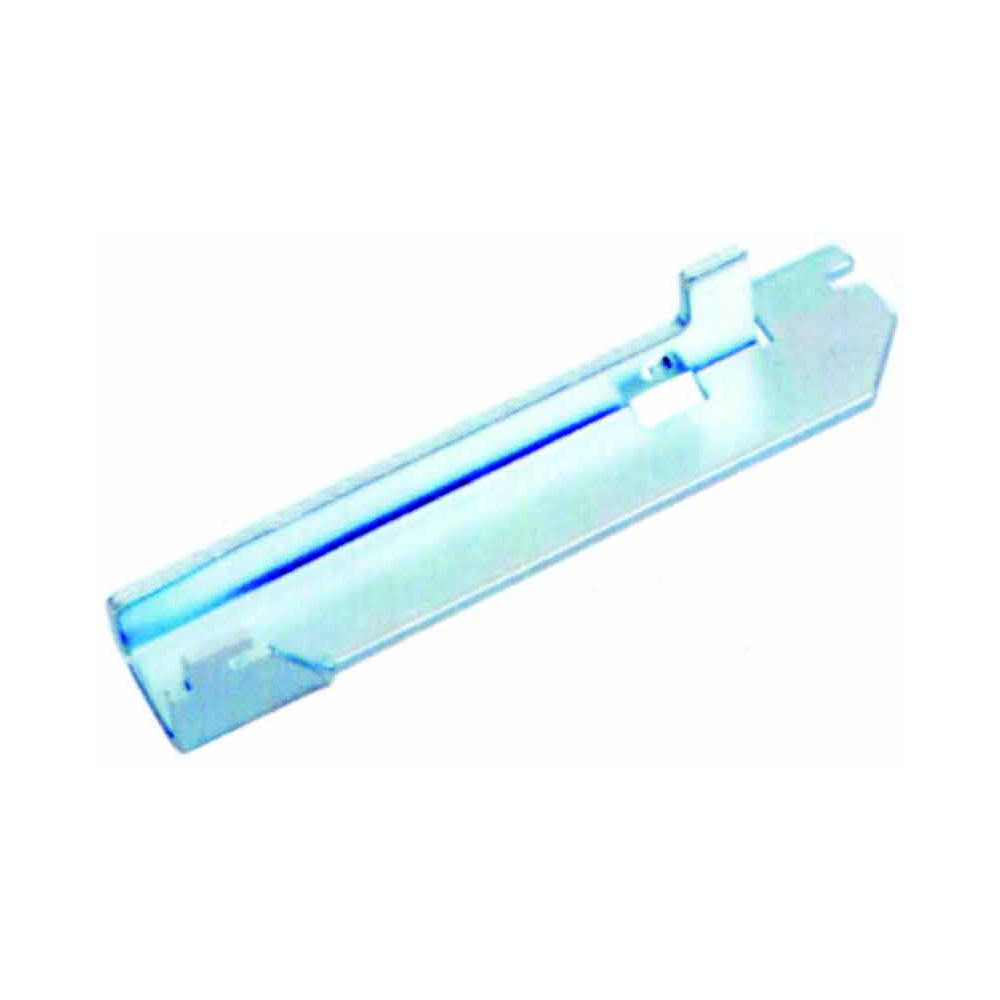

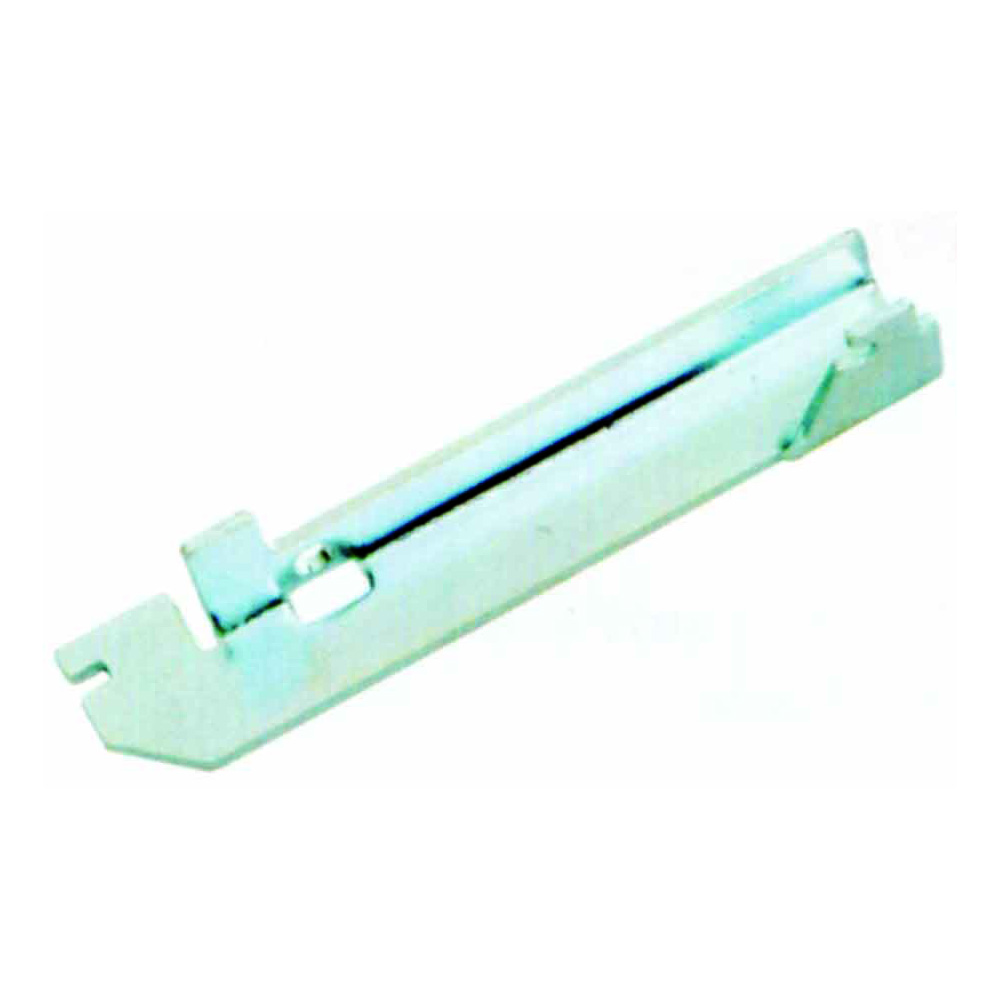

Model:RQG-8PT6887(07) 8PT6789(07)

Switchgear Mechanism Support – Product Details and Application Introduction Product Overview The switchgear mechanism support is a crucial structural component that stabilizes and aligns mechanical parts within the switchgear assembly. Typically made from high-strength materials such as galvanized steel or reinforced alloys, it ensures mechanical reliability under harsh operational conditions. These supports help accommodate the motion of critical components like operating mechanisms, latching devices, and interlocking systems. Their design prioritizes both precision and durability, enabling smooth operation and extending the lifespan of the switchgear.

Features and Specifications

Material: Galvanized steel, aluminum alloys, or polymer composites for enhanced corrosion resistance and strength.

Design Precision: CNC-machined surfaces ensure accurate alignment with moving parts, minimizing friction and wear.

Compatibility: Available in various sizes to fit multiple switchgear models, including medium- and low-voltage switchgear.

Corrosion Resistance: Coated to withstand moisture, dust, and environmental pollutants.

Load Capacity: Designed to support mechanical forces during switching operations, ensuring consistent performance over time.

Maintenance-Friendly: Simplified assembly and disassembly allow easy inspection and replacement.

Applications

1.Interlocking Mechanisms: The support secures components like ground switches and circuit breaker handles, ensuring interlock systems function seamlessly.

2.Manual and Motorized Operations: It stabilizes mechanical drive elements, including spring-charged mechanisms or motorized actuators used for remote control.

3.Safety Compliance: By maintaining alignment and mechanical integrity, the support reduces risks of misoperation or component failure, ensuring the safety of both equipment and operators.

4.High-Voltage and Medium-Voltage Panels: In these panels, the mechanism support handles high mechanical stress during fault conditions or load-switching events.

5.Custom Retrofitting: Mechanism supports can be tailored to retrofit existing switchgear systems, enhancing their operational efficiency and extending service life.

In conclusion, switchgear mechanism supports are essential for the proper function and longevity of switchgear assemblies. Their robust construction and precise design not only ensure smooth operation but also contribute to safety and operational reliability in various power distribution systems.
