Switchgear unit drawer

Key Features:

Modular Design: The drawer units are designed for ease of installation and replacement, ensuring flexibility in configuration and scalability for future upgrades.

Interlocking Mechanisms: The unit typically incorporates advanced interlocking systems that prevent operation under unsafe conditions, enhancing the safety of personnel and equipment.

Seamless Connection: It is equipped with primary and secondary plug-in connections for rapid and reliable interfacing with the main switchgear body, allowing for quick insertion and withdrawal.

Safety Shutters: Most drawers include automatic safety shutters that cover live parts during maintenance or drawer removal, preventing accidental contact.

Ventilation and Insulation: Well-designed ventilation and thermal insulation features protect sensitive electrical components from overheating.

Applications:

Electrical Distribution: The Switchgear Unit Drawer is commonly used in power distribution systems in industries, commercial buildings, and infrastructure projects where safe and efficient management of electrical loads is critical.

Control and Monitoring: It provides a compact, organized space for housing protection relays, meters, and control devices, ensuring that power management and monitoring can be handled centrally.

Critical Facilities: These drawers are essential in facilities that require continuous power and where swift maintenance is necessary, such as data centers, hospitals, and manufacturing plants.

This component enhances operational flexibility, reliability, and safety, making it a critical part of modern electrical distribution systems.

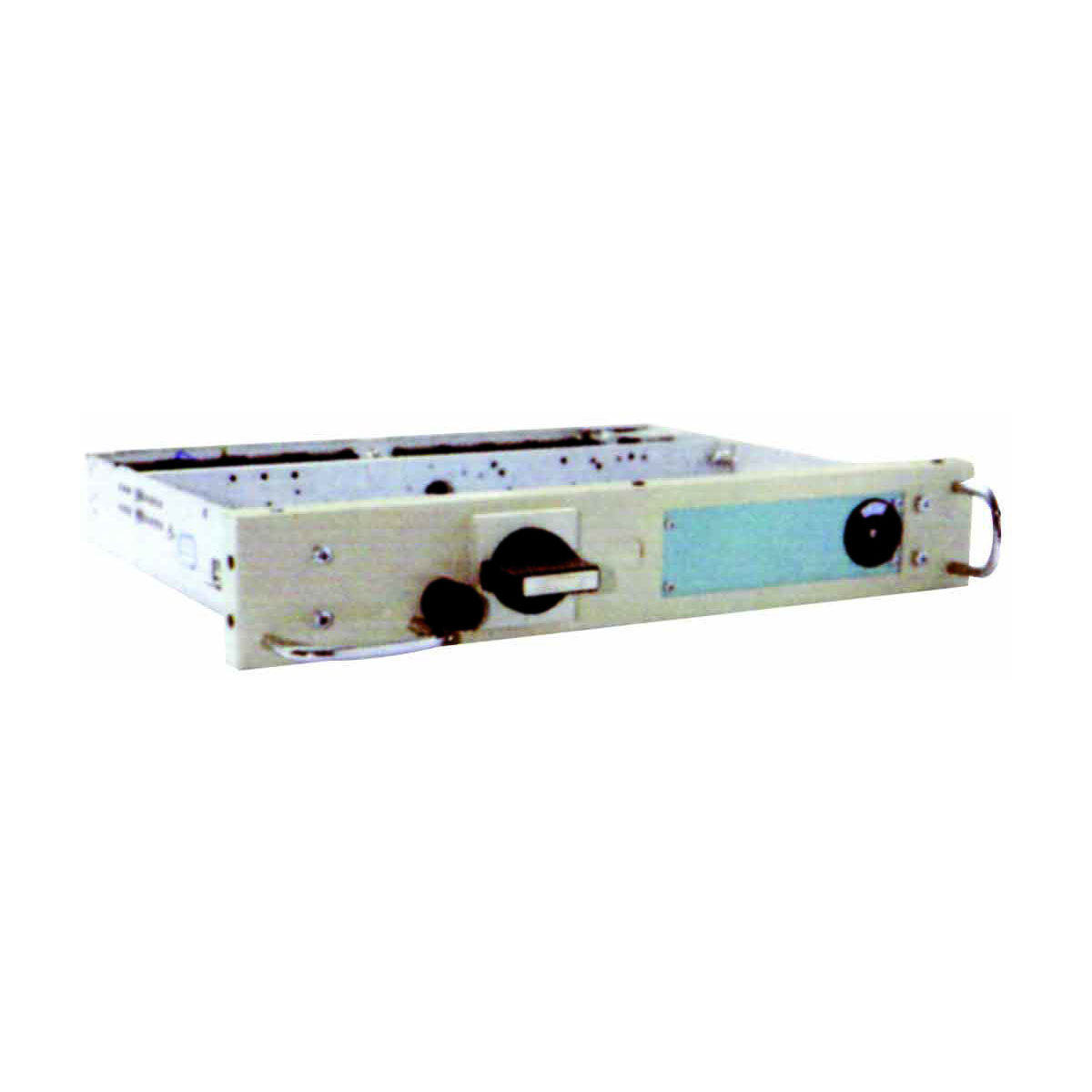

8PT100CT	Designdfion,Uint 1drower

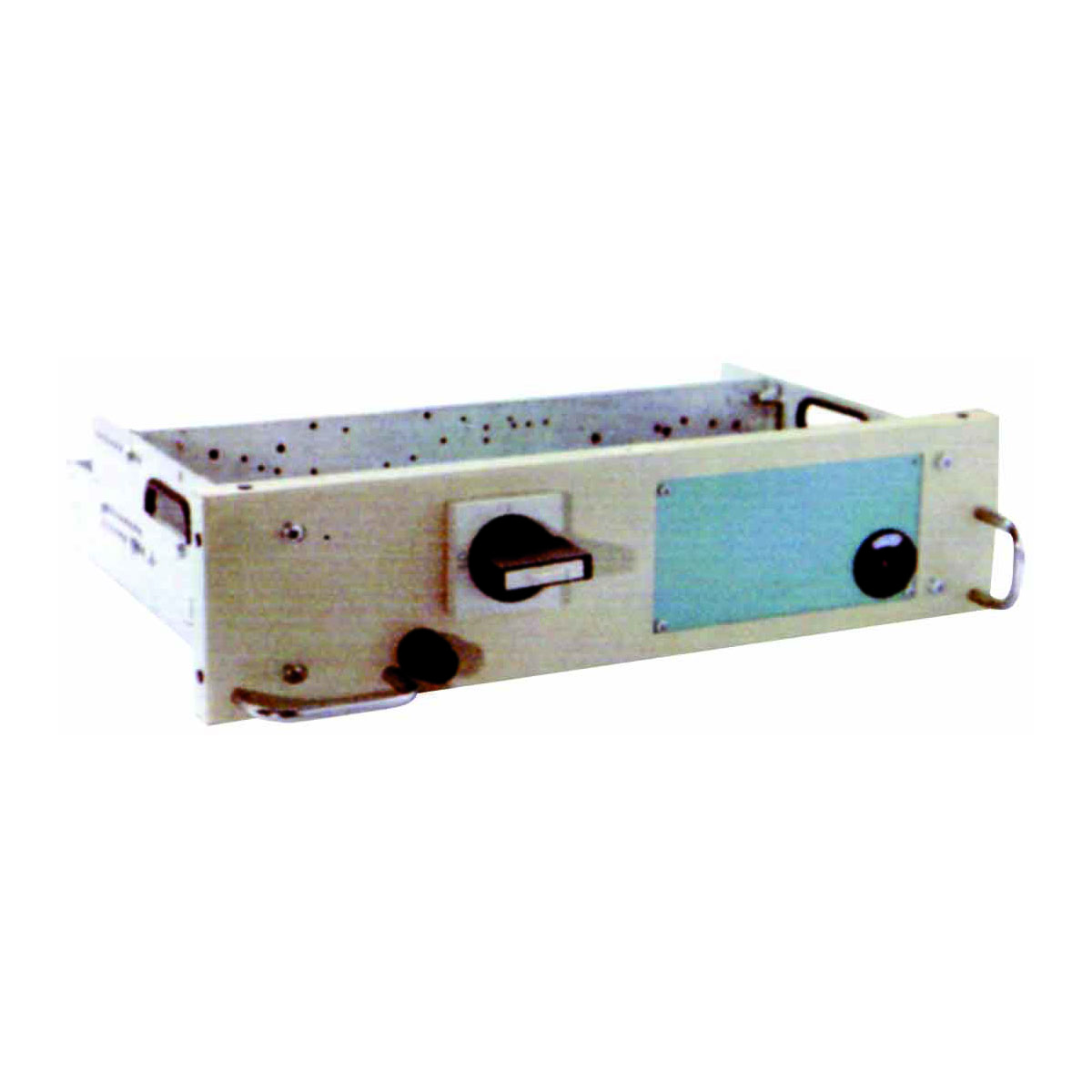

8PT150CT	Designdfion,Uint 1.5drower

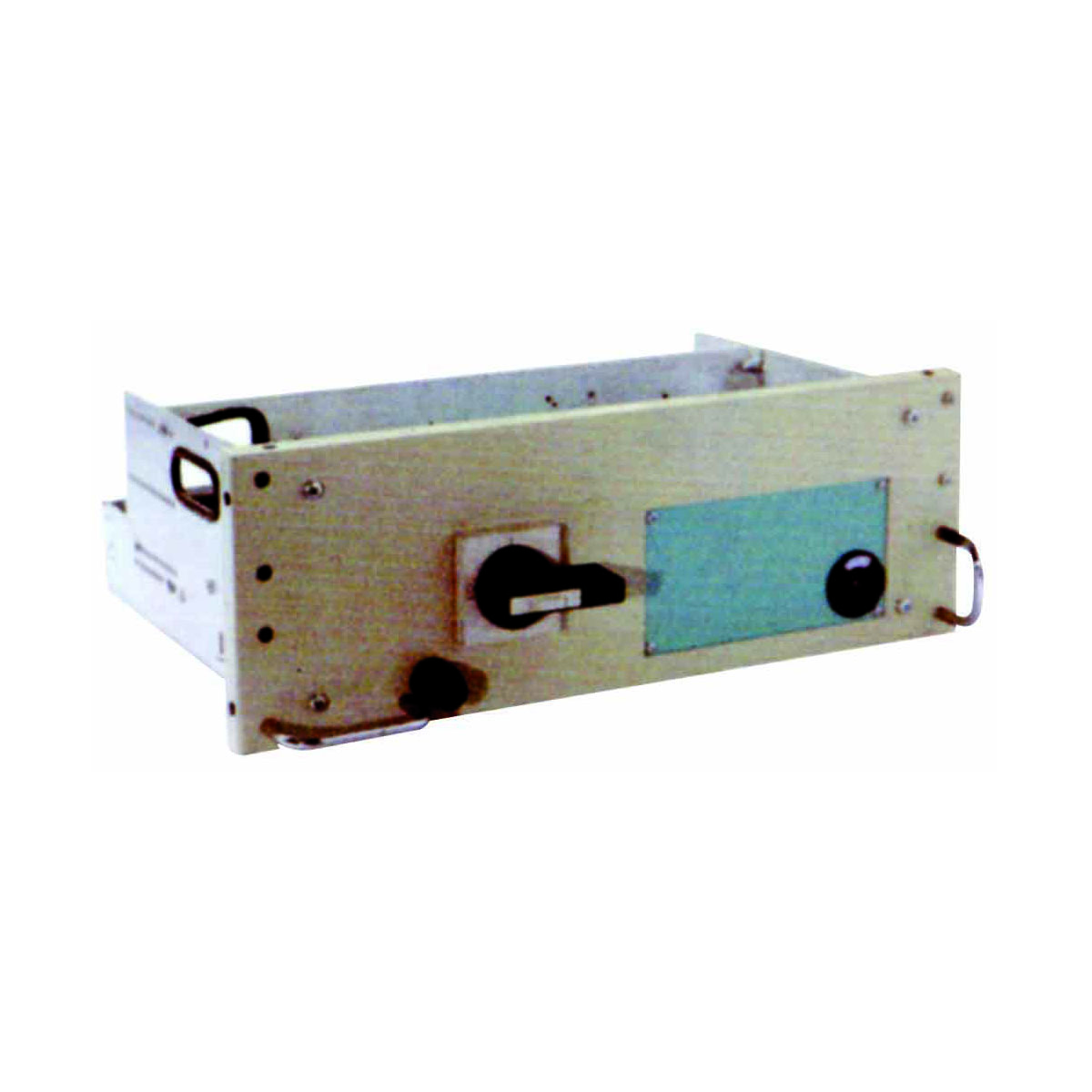

8PT200CT	Designdfion,Uint 2drower

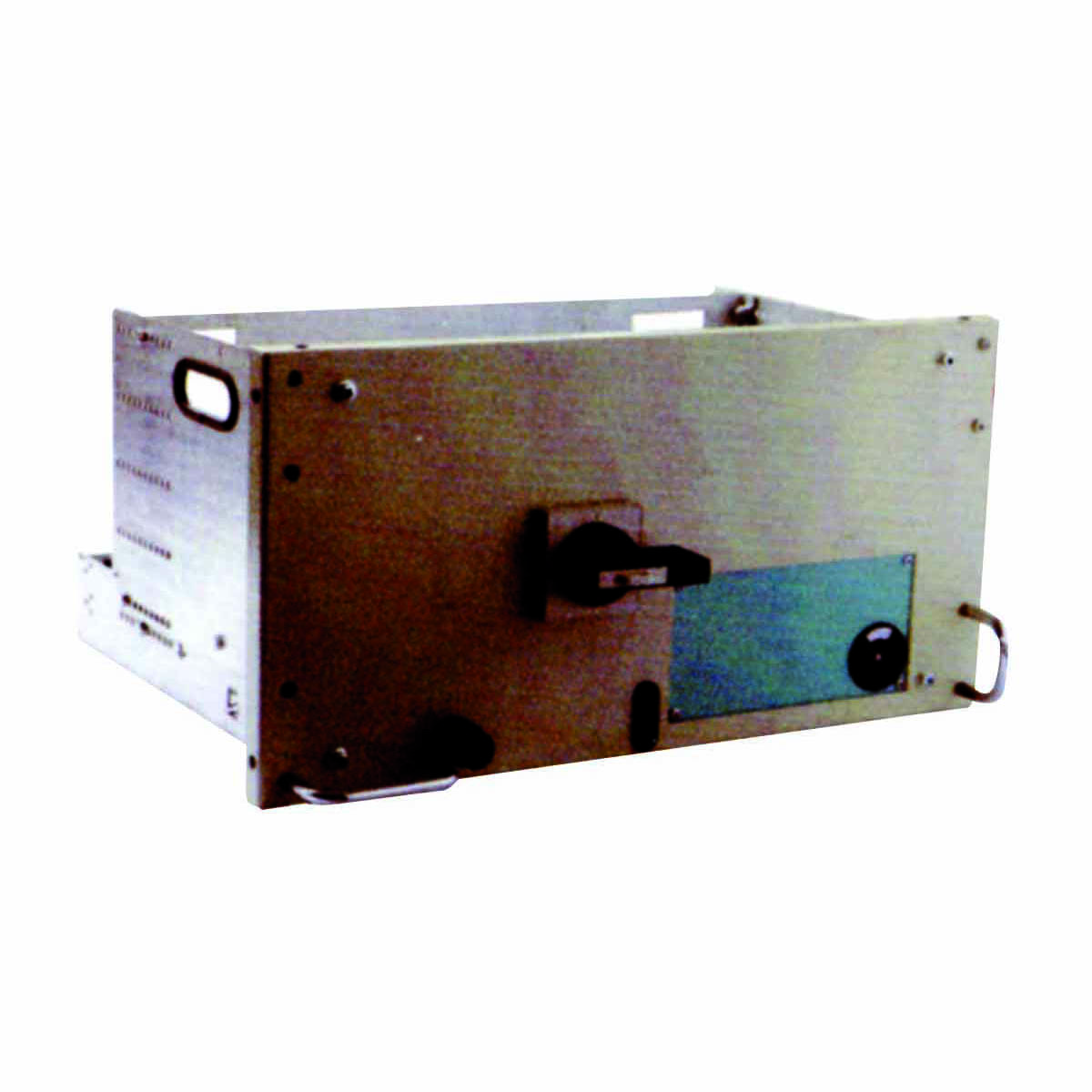

8PT300CT	Designdfion,Uint 3drawer

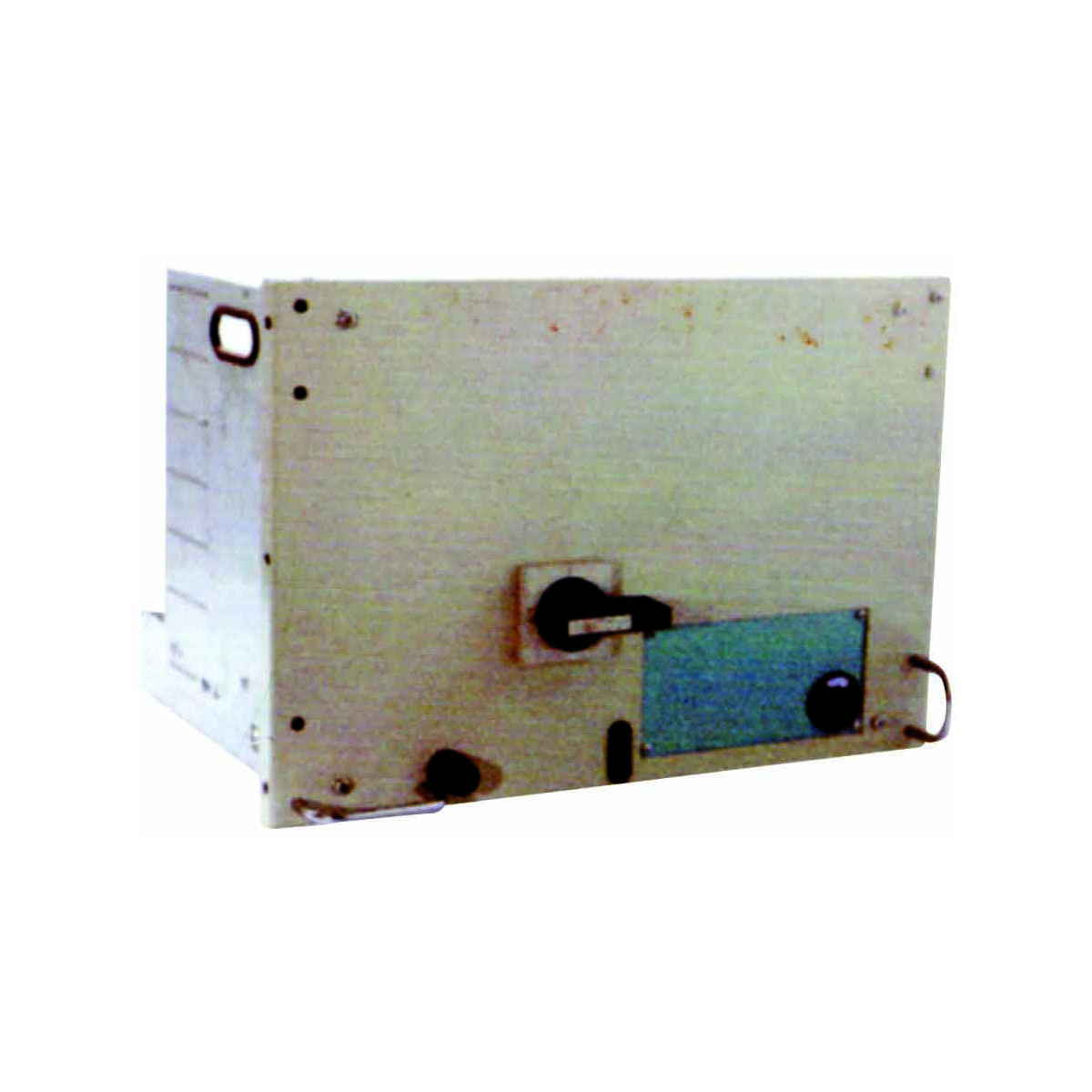

8PT400CT	Designdfion,Uint 4drawer

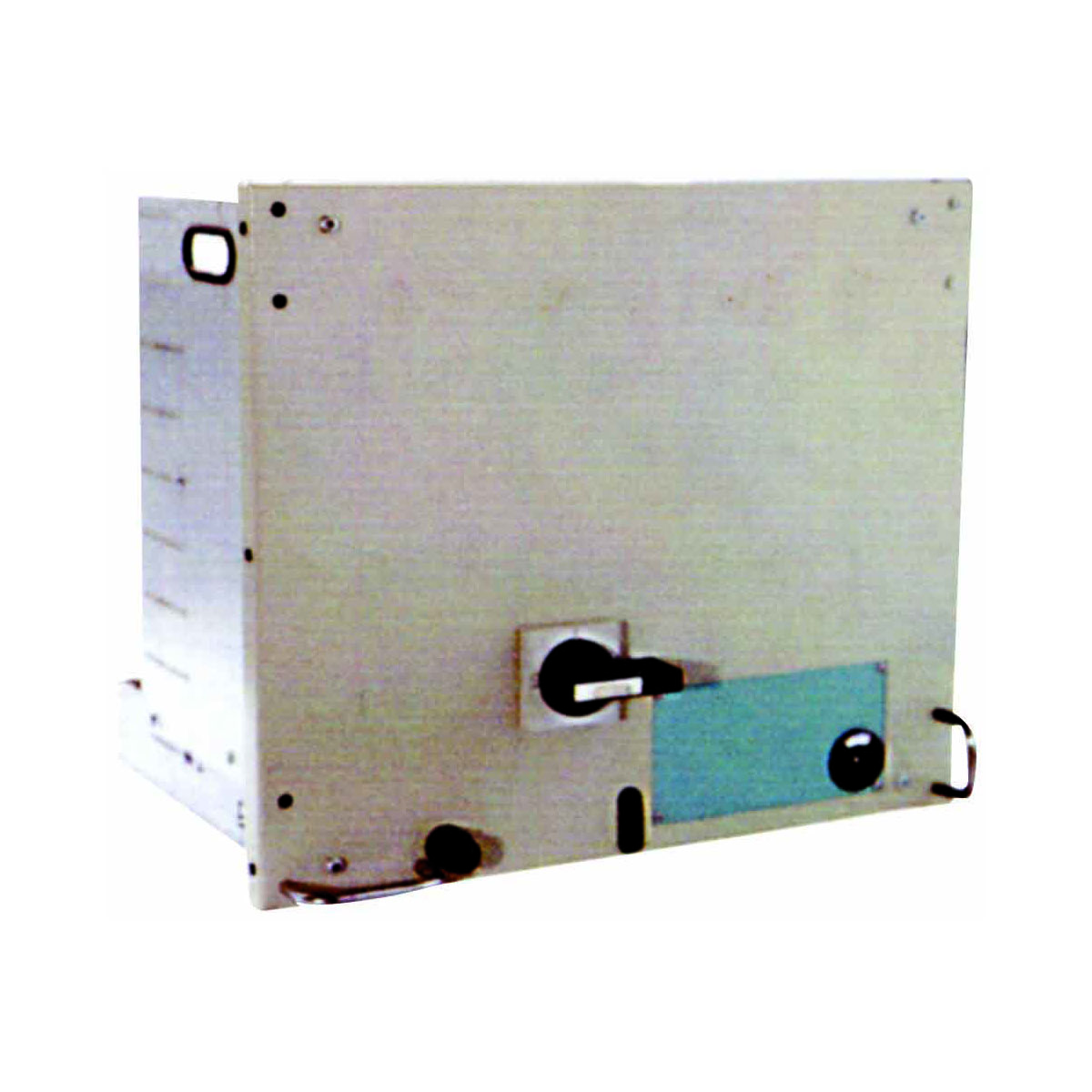

8PT500CT	Designdfion,Uint 5drawer
