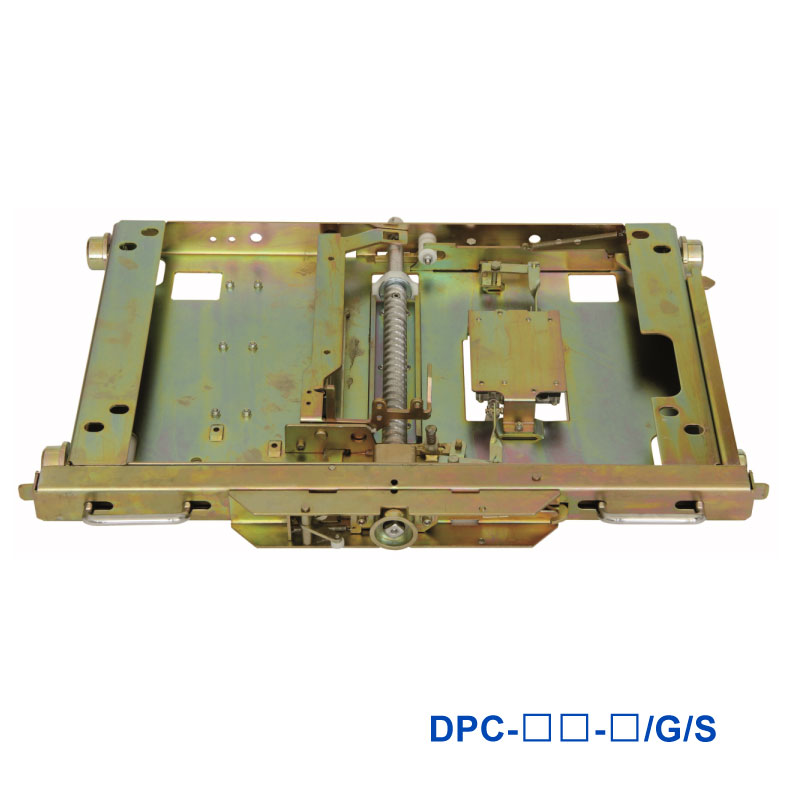

Switchgear VCB Chassis

Applications of the Switchgear VCB Chassis:

Electrical Substations: Used in substations to house and protect vacuum circuit breakers, providing reliable protection and ensuring smooth operation of high-voltage electrical systems.

Industrial Facilities: Ideal for use in industrial plants where electrical protection and control are essential, offering enhanced safety and efficiency.

Utility Companies: Widely used by utility companies for managing and protecting electrical grids, the VCB chassis ensures that circuit breakers are securely installed and can operate effectively under demanding conditions.

Functionality:

Fault Protection: The chassis provides a reliable framework for VCBs to operate, ensuring rapid isolation of faulty circuits and preventing damage to electrical equipment.

Easy Maintenance: Designed for easy access and maintenance, the VCB chassis allows for quick servicing and replacement of circuit breakers, reducing downtime and enhancing operational efficiency.

Safety and Stability: The chassis holds the VCB unit securely in place, minimizing the risk of misalignment or movement during operation, which could lead to system failures or safety hazards.Applications:

Electrical Substations: Used in substations to house and protect vacuum circuit breakers, providing reliable protection and ensuring smooth operation of high-voltage electrical systems.

Industrial Facilities: Ideal for use in industrial plants where electrical protection and control are essential, offering enhanced safety and efficiency.

Utility Companies: Widely used by utility companies for managing and protecting electrical grids, the VCB chassis ensures that circuit breakers are securely installed and can operate effectively under demanding conditions.

Functionality:

Fault Protection: The chassis provides a reliable framework for VCBs to operate, ensuring rapid isolation of faulty circuits and preventing damage to electrical equipment.

Easy Maintenance: Designed for easy access and maintenance, the VCB chassis allows for quick servicing and replacement of circuit breakers, reducing downtime and enhancing operational efficiency.

Safety and Stability: The chassis holds the VCB unit securely in place, minimizing the risk of misalignment or movement during operation, which could lead to system failures or safety hazards.

a:DPC--/G：this type of chassis car only adds the closing operation function, that is, when the cabinet door is opened, the handle can not be inserted to shake the chassis car, only close the door to shake, the interlock function does not need to change the cabinet door.

b:DPC--/S：this model chassis car adds the door locking function on the basis of a, that is, when the hand car leaves the test position, the cabinet door is locked, can not be opened, only back to the test position, the cabinet door can be opened, the interlock function needs to change the cabinet do
