Vertical Bus Switchgear Assembly

Vertical Bus Switchgear Assembly Key Features:

High-Current Capacity: Designed to support high-power applications with a robust current-carrying capacity.

Enhanced Safety: Equipped with anti-arc and short-circuit protection mechanisms.

Reliable Insulation: High dielectric strength insulation to minimize electrical hazards.

Modular Design: Compatible with various switchgear models, offering flexible installation options.

Maintenance-Free: Low-maintenance requirements, ensuring cost efficiency and reducing downtime.

Applications: Switchgear primary plug-in units are predominantly used in:

1.Substations: To connect transformers and circuit breakers, ensuring safe power distribution.

2.Power Plants: As part of the electrical distribution system, supporting efficient energy flow.

3.Industrial Electrical Systems: Used in factories, manufacturing plants, and other industrial environments to manage and control electrical power.

4.Renewable Energy Facilities: Critical in wind farms and solar power installations for reliable power distribution and grid integration.

These units play an integral role in enhancing the operational efficiency, safety, and reliability of electrical infrastructure. The ease of installation and replacement also reduces the need for specialized labor, contributing to lower maintenance costs and enhanced system uptime.

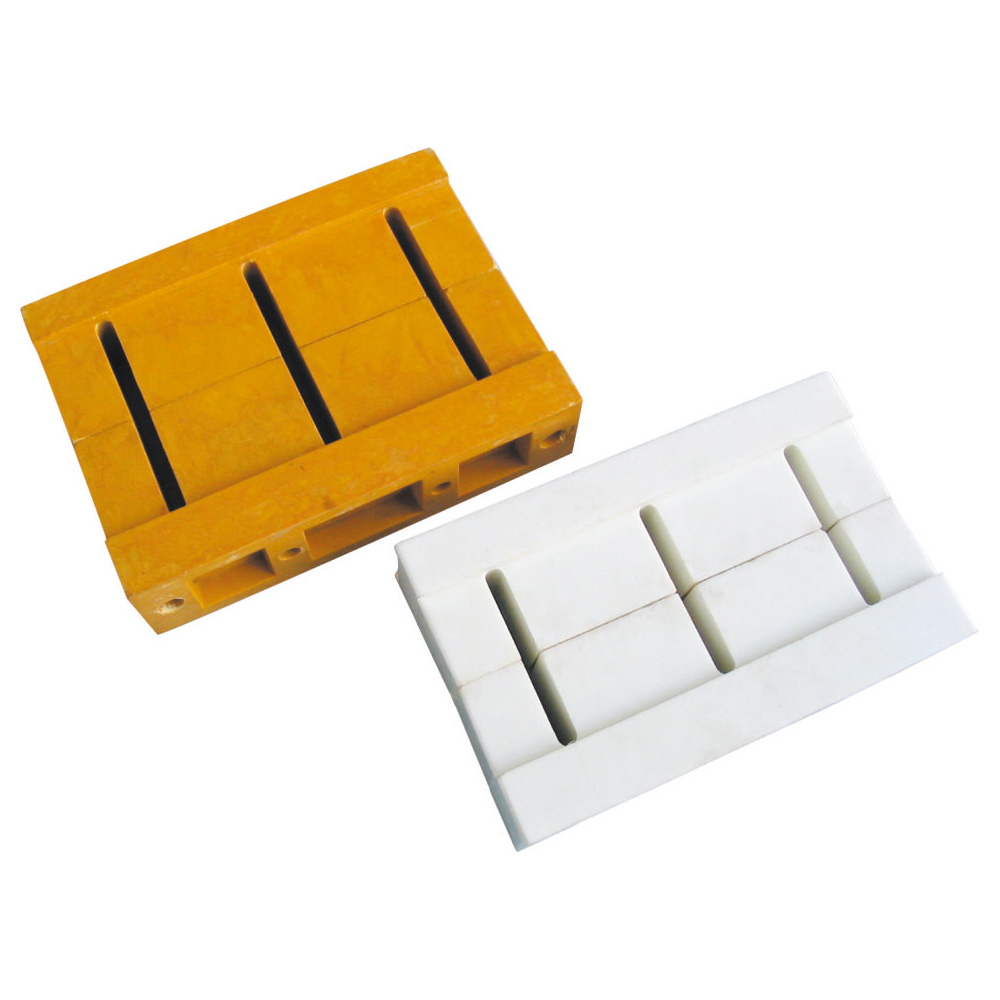

Vertical busbar support

Code	Model No.	PIC
1060201	ZMJ3-6×30
1060202	ZMJ3-6×40
1060203	ZMJ3-6×50
1060204	ZMJ3-6×60
1060205	ZMJ3-6×80
1060206	ZMJ3-6×100
