Circuit Breaker Operating Mechanism

Circuit Breaker Operating Mechanism

Design and Construction:

The operating mechanism is typically made of high-strength materials, ensuring durability and resistance to harsh environmental conditions.

It features a compact design, allowing for easy integration into various switchgear configurations.

The mechanism includes a combination of mechanical linkages, springs, and levers that facilitate the quick opening and closing of switches.

Operating Principles:

It operates through a spring mechanism that stores energy, enabling rapid actuation of the circuit breaker when needed.

The mechanism can be manual or motorized, providing flexibility in operation. Manual mechanisms allow for manual control, while motorized options enable remote operation, enhancing convenience and safety.

Safety Features:

Equipped with interlocking devices to prevent accidental operation, ensuring the safety of maintenance personnel.

Some models include indicator lights or alarms to provide visual feedback on the operational status of the switchgear.

Maintenance:

The operating mechanism is designed for easy maintenance, with accessible components that simplify inspections and repairs.

Regular maintenance checks are recommended to ensure optimal performance and longevity.

Applications:

Electrical Distribution:

Widely used in power distribution substations to control the flow of electricity, ensuring stable and efficient distribution.

Industrial Settings:

Essential in factories and manufacturing plants, where reliable power supply is critical for operational continuity.

Renewable Energy Systems:

Increasingly used in wind and solar energy installations to manage the connection and disconnection of renewable energy sources to the grid.

Commercial Buildings:

Employed in commercial electrical systems to manage load distribution and protect against overloads and faults.

In summary, the Switchgear Operating Mechanism is a vital component in modern electrical systems, ensuring efficient operation and enhancing safety in various applications. Its robust design, reliability, and versatility make it an essential element for any electrical infrastructure.

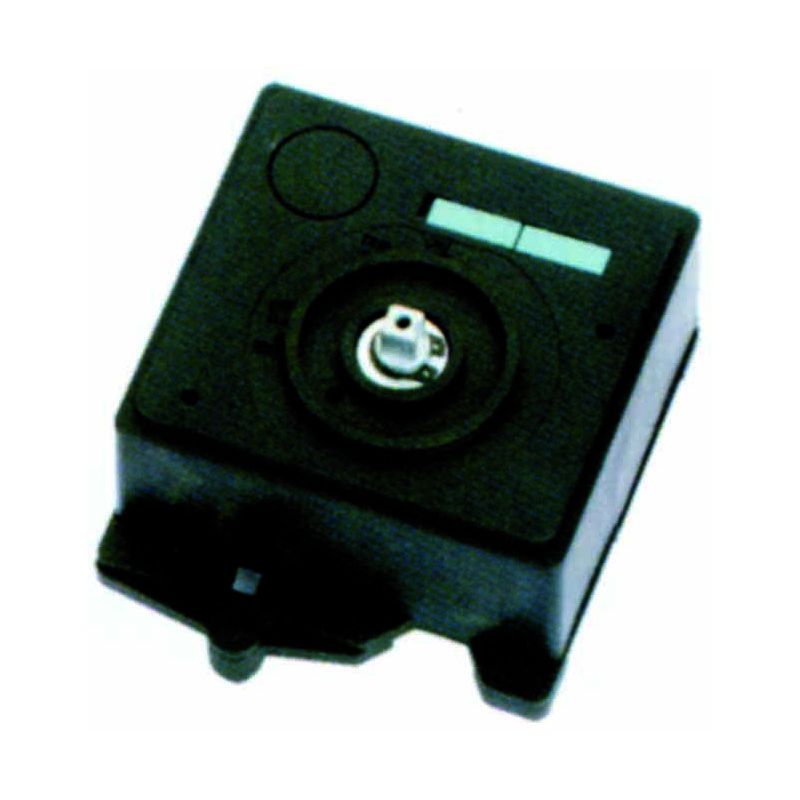

CJG-1(63)

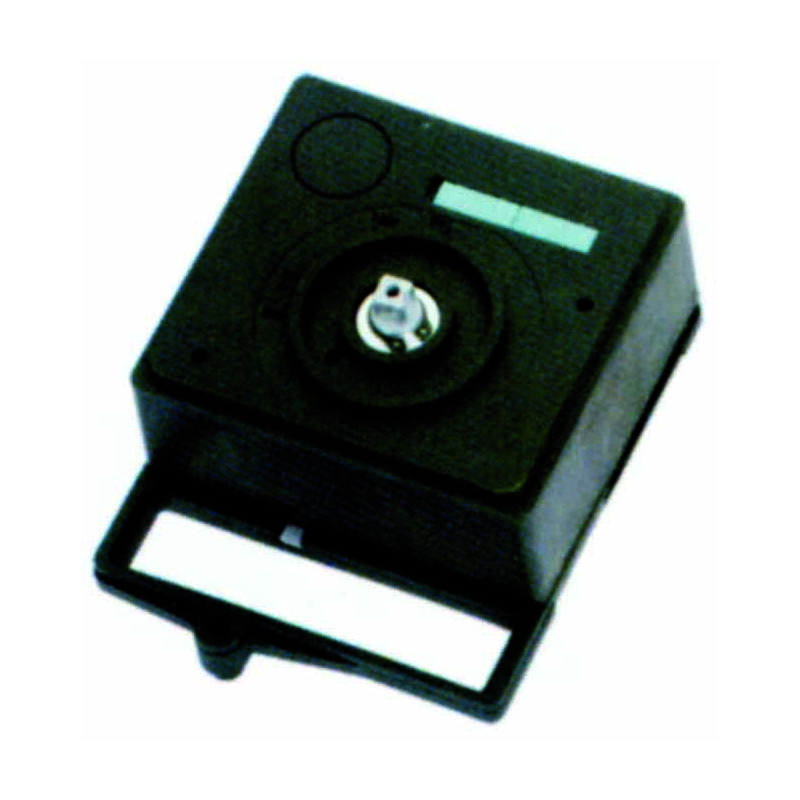

CJG-1(64)

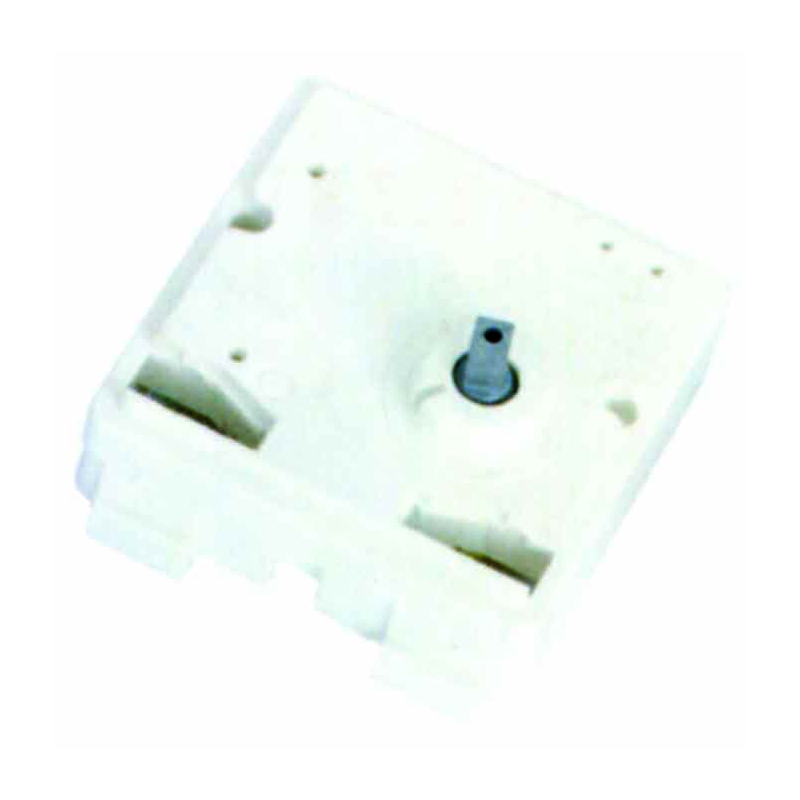

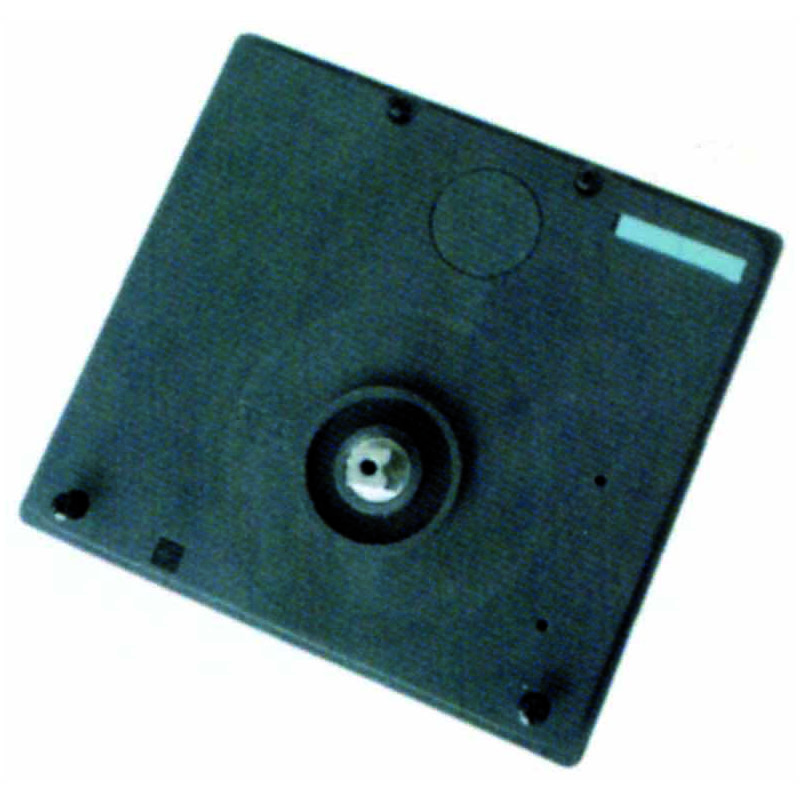

CJG-1(65)

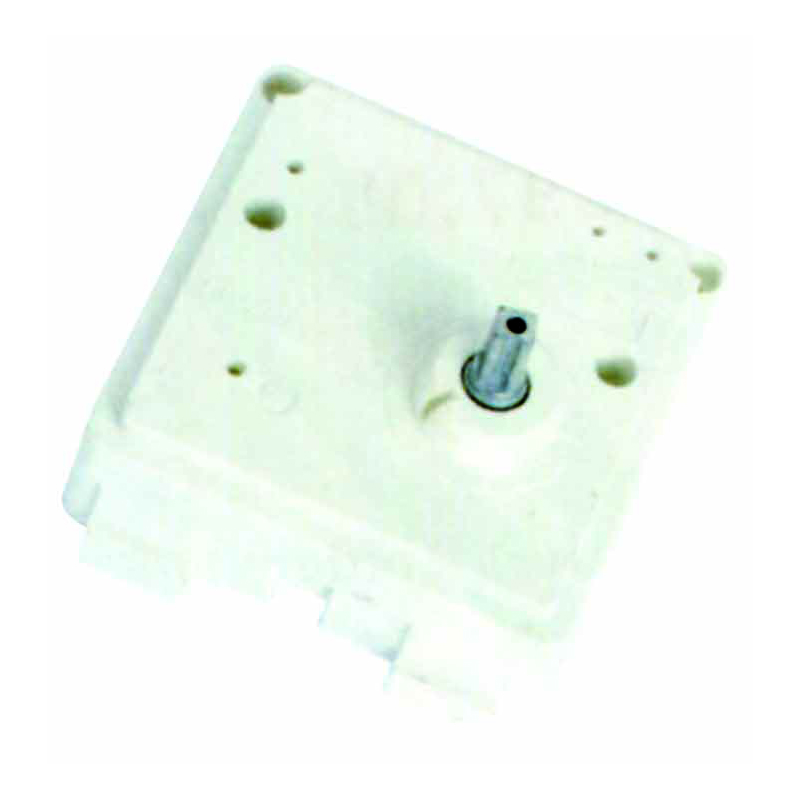

CJG-1(61)
CJG-1(62)
