Guide rail for electrical switchgear

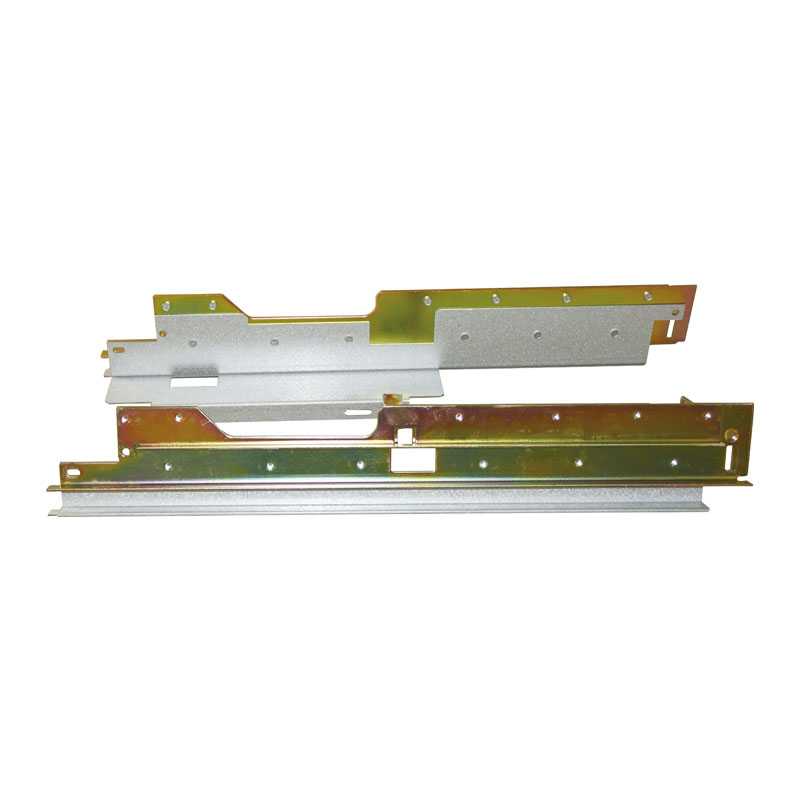

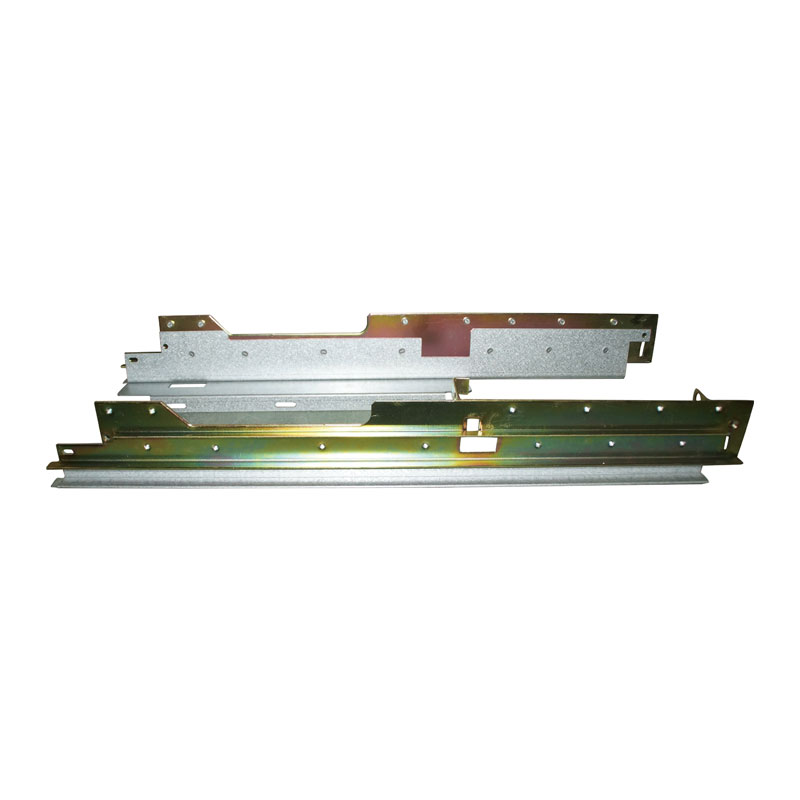

Switchgear Guide Rail Main functions of Switchgear Guide Rail produced by Richge Company:

1. Support and fixation: Guide rails provide a solid installation foundation to ensure that the switchgear is firmly fixed in the control cabinet.

2. Device positioning: Accurately position the switchgear to avoid improper installation Angle or unstable installation and prevent device displacement.

3. Easy maintenance: The guide rail design makes the installation, disassembly and replacement of the equipment more convenient, simplifying the maintenance and maintenance of the electrical system.

4. Anti-vibration and stability: the guide rail structure can effectively slow down the vibration and impact of the electrical equipment during operation to ensure the stable operation of the equipment.

Switchgear Guide Rail produced by Richge Company Advantages:

1. Easy installation: Standardized design enables the guide rail to be quickly and accurately installed in various electrical cabinets, reducing site construction time.

2. Improve the stability of the equipment: the guide rail effectively reduces the vibration and instability factors in the operation of the equipment, and improves the overall reliability of the system.

3. Easy maintenance and replacement: When failure occurs, the guide rail system facilitates maintenance personnel to quickly locate the faulty equipment and disassemble it, reducing the difficulty of maintenance.

4. High flexibility: Modern guide rail system can adapt to the needs of different equipment, especially suitable for frequent replacement or upgrade of equipment occasions.

Switchgear Guide Rail produced by Richge Company Common applications:

1.Low-voltage PDC: used to install electrical components such as circuit breakers, contactors, and relays.

2.High-voltage power distribution equipment: used to install large circuit breakers, isolating switches and other equipment, usually require higher load capacity and shock resistance of the guide rail.

3.Automatic control panel: used to support and fix PLC, inverter, contactor and other equipment to ensure the stable operation of the equipment. Automatic control panel: used to support and fix PLC, inverter, contactor and other equipment to ensure stable operation of equipment.

Outine and installation dimension drawing

5XS.260.010/011
5XS.260.010/011.3(Lengthen type：Lengthen 200、For 3AH, ZN12, ZN28, ZN65 and other modified handcart type circuit breakers）
5XS.260.010/011.10(Lengthen type：Lengthen153、with VB2)
