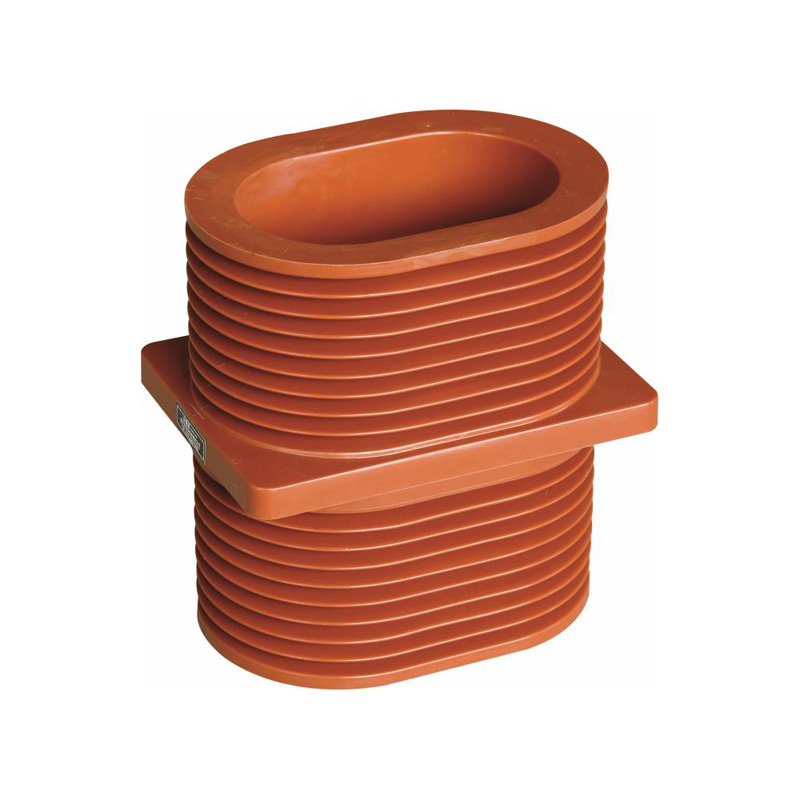

The High voltage wall bushing is an essential component designed to facilitate the safe and reliable passage of high-voltage electrical conductors through walls, enclosures, or barriers. Engineered to handle high-voltage applications with exceptional insulation and mechanical support, this bushing ensures effective electrical isolation and protection while maintaining the integrity of the structural barrier. In urban environments, where space and safety are paramount, these components facilitate efficient power distribution, reducing the risk of electrical incidents.
High voltage wall bushing Applications:
● Substation Equipment: Used in substations to insulate and support high-voltage conductors as they pass through structural barriers, ensuring safe and reliable operation of electrical equipment.
● Industrial and Commercial Systems: Suitable for various industrial and commercial high-voltage applications where reliable insulation and support are necessary for system safety and performance.
High voltage wall bushing Key Features:
● Robust Construction: Engineered to withstand mechanical forces, thermal stresses, and environmental conditions, ensuring long-term durability and performance in demanding applications.
● Effective Insulation: Provides excellent electrical isolation to prevent arcing, leakage, and electrical faults, ensuring safe and reliable operation of high-voltage systems.
High voltage wall bushing Specification：
| Model | Drawing |
| TG1-12Q/110X180 |
|
| TG2-12Q/140X200 |
|
| TG3-120140x200/(5ZY-APG-12) large current |
|
| TG4-120V00X100(SZY-APG-12) |
|
| TG5-120725X125(SZY-APG-12) |
|
| T66-120V152X152(SZY-APG-12) |
|
