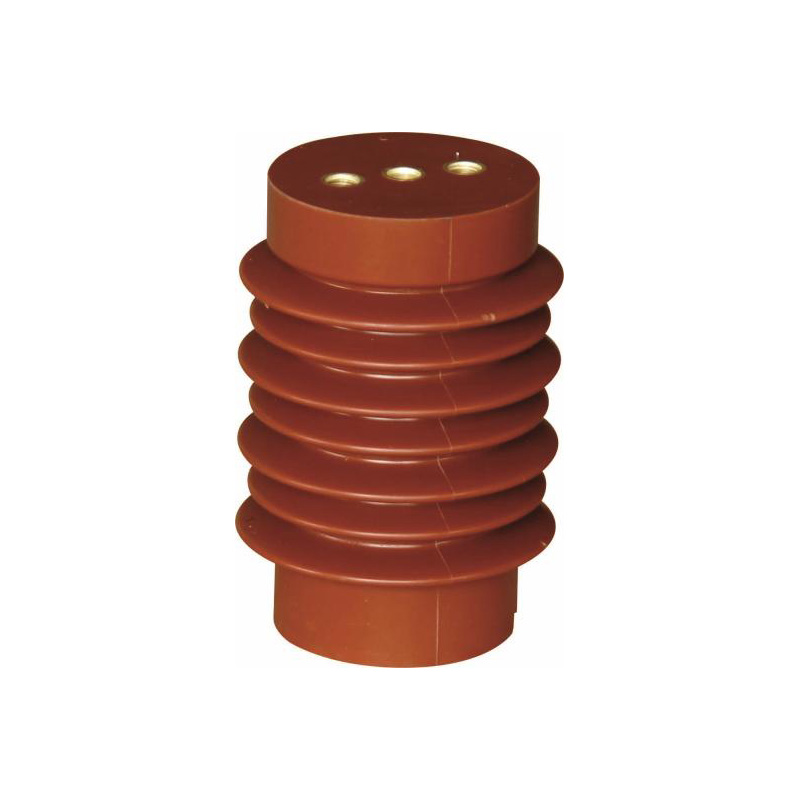

The High voltage electrical insulator is a vital component designed to provide electrical isolation and support in high-voltage power systems. Engineered to withstand extreme electrical stresses and environmental conditions, this insulator ensures the reliable and safe operation of electrical infrastructure by preventing electrical leakage and maintaining system integrity.Typically manufactured from durable materials such as epoxy resin or cross-linked polyethylene, these components exhibit excellent dielectric properties and can withstand various environmental challenges, including moisture, temperature variations, and chemical exposure.
High voltage electrical insulator Applications:
● Substation Equipment: Used in substations to provide electrical isolation and support for high-voltage equipment, such as circuit breakers, transformers, and busbars, maintaining system integrity and safety.
● Industrial Electrical Systems: Suitable for various industrial applications where high-voltage insulation and support are required to ensure reliable and safe operation of electrical equipment and infrastructure.
High voltage electrical insulator Key Features:
● High Electrical Insulation: Specifically designed to handle high-voltage applications, providing excellent insulation properties to prevent electrical discharge and leakage, ensuring safe operation up to the specified voltage rating.
● Thermal Resistance: Capable of operating effectively under varying temperature conditions, with materials designed to withstand heat generated by electrical currents without degradation.
High voltage electrical insulator Specification：
| Model | Drawing |
| JYZ1-12Q |
|
| JYZ2-12Q |
|
| JYZ3-12Q |
|
| JYZ4-12Q/80*140 |
|
| JYZ5-12Q/95*130 |
|
| JYZ6-12Q |
|
| JYZ7-12Q |
|
| JYZ8-12Q/80*130 JYZ8-12Q/80*140 JYZ8-12Q/80*145 |
|
| JYZ9-12Q/95*145 JYZ9-12Q/95*170 |
|
| JYZ10-12Q/140*145 JYZ10-12Q/140*170 |
|
