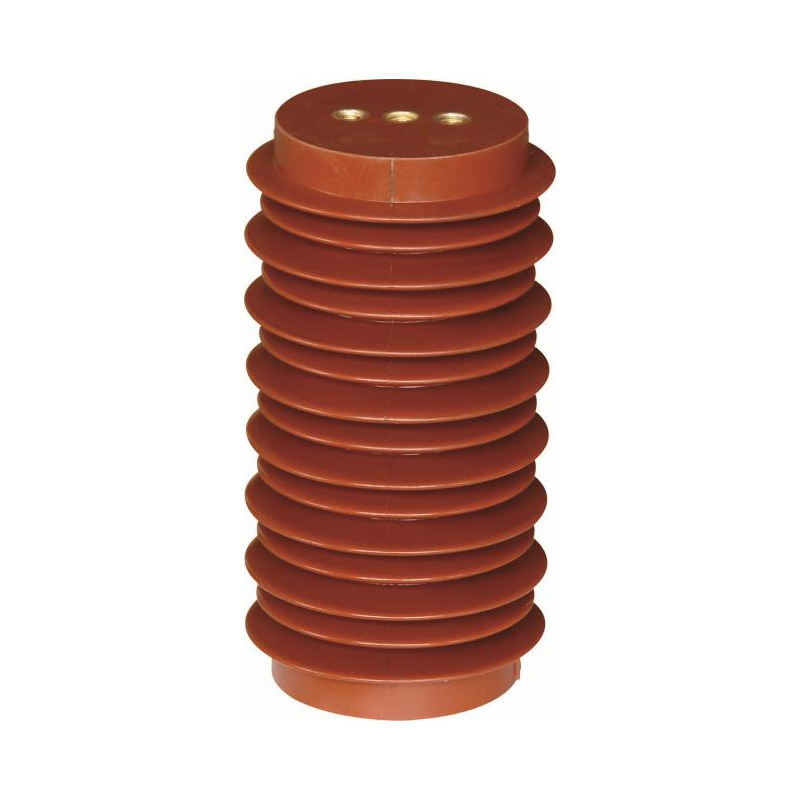

The HV insulation insulator is a vital component designed to provide electrical isolation and support in high-voltage power systems. Engineered to withstand extreme electrical stresses and environmental conditions, this insulator ensures the reliable and safe operation of electrical infrastructure by preventing electrical leakage and maintaining system integrity.Typically made from high-quality materials such as epoxy resin or silicone, these components offer excellent dielectric properties and are designed to withstand challenging environmental conditions, including temperature fluctuations, humidity, and contamination.
HV insulation insulator Applications:
● Power Transmission Lines: Ideal for use in high-voltage power transmission systems to insulate conductors from the supporting structures and the ground, preventing electrical faults and ensuring safe power delivery.
● Substation Equipment: Used in substations to provide electrical isolation and support for high-voltage equipment, such as circuit breakers, transformers, and busbars, maintaining system integrity and safety.
HV insulation insulator Key Features:
● High Electrical Insulation: Specifically designed to handle high-voltage applications, providing excellent insulation properties to prevent electrical discharge and leakage, ensuring safe operation up to the specified voltage rating.
● Thermal Resistance: Capable of operating effectively under varying temperature conditions, with materials designed to withstand heat generated by electrical currents without degradation.
HV insulation insulator Specification：
| Model | Drawing |
| JYZ-24Q/110*210(SZY-APG-24) |
|
| JYZ-24Q/110*225(SZY-APG-24) |
|
| JYZ-24Q/110*240(SZY-APG-24) |
|
| JYZ-24Q/110*245(SZY-APG-24) |
|
