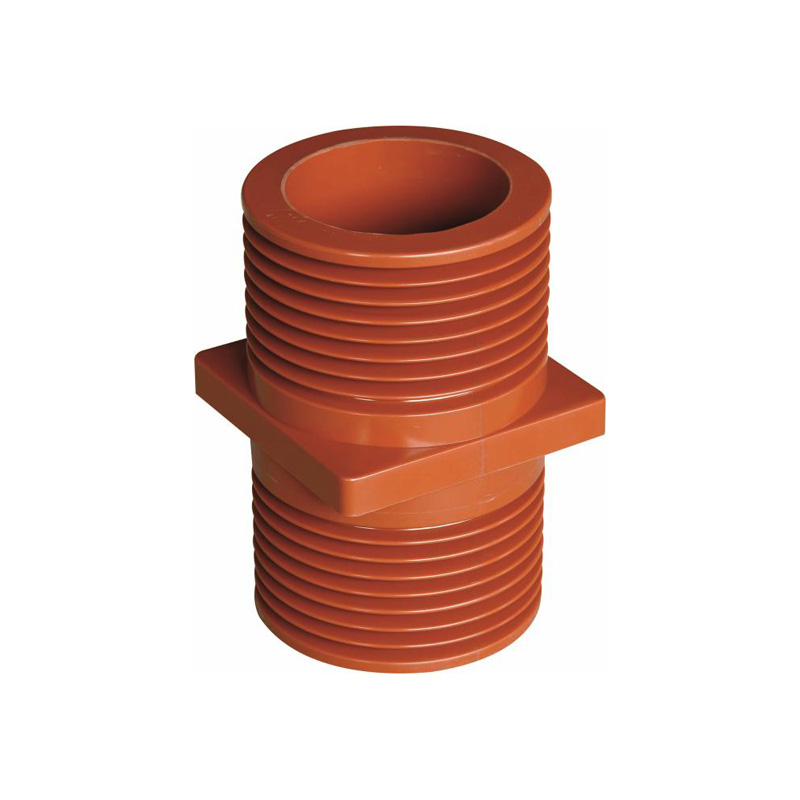

The HV insulation conduit is an essential component designed to facilitate the safe and reliable passage of high-voltage electrical conductors through walls, enclosures, or barriers. Engineered to handle high-voltage applications with exceptional insulation and mechanical support, this bushing ensures effective electrical isolation and protection while maintaining the integrity of the structural barrier.As the transition to renewable energy sources accelerates, the role of 24kV insulation components becomes increasingly significant in integrating these sources into existing power grids.
HV insulation conduit Applications:
● Power Distribution Systems: Ideal for use in power distribution networks where high-voltage conductors need to pass through walls, barriers, or enclosures, providing safe and effective electrical isolation.
● Industrial and Commercial Systems: Suitable for various industrial and commercial high-voltage applications where reliable insulation and support are necessary for system safety and performance.
HV insulation conduit Key Features:
● High Voltage Rating: Designed to accommodate high-voltage applications up to the specified voltage rating, providing reliable insulation and support for conductors passing through walls or enclosures.
● Effective Insulation: Provides excellent electrical isolation to prevent arcing, leakage, and electrical faults, ensuring safe and reliable operation of high-voltage systems.
HV insulation conduit Specification：
| Model | Drawing |
| TG24Q/180X180X280 |
|
| TG-24Q/190X190X330 |
|
| TG-24Q/175X255X310 |
|
