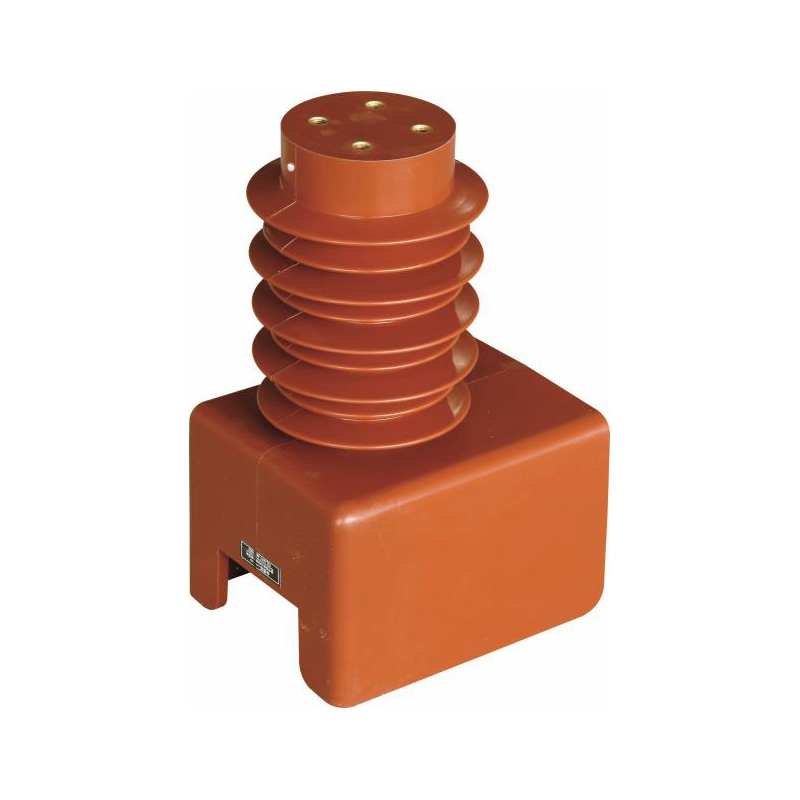

HV Single-piece Insulator

The HV single-piece insulator is a critical component designed to provide superior electrical insulation and mechanical support in high-voltage power systems. Engineered as a single, unified piece, this insulator ensures reliable performance and durability, making it ideal for applications where robust insulation and structural integrity are essential.In terms of applications, 35kV switchgear insulation components are commonly found in substations, industrial facilities, and renewable energy installations, such as wind farms and solar power plants. In substations, they are essential for isolating high-voltage equipment, facilitating safe maintenance practices, and ensuring the overall integrity of the power distribution system.

HV single-piece insulator Applications:

● Power Transmission Lines: Ideal for use in high-voltage power transmission systems to support and insulate conductors, ensuring reliable and safe power delivery over long distances.

● Substation Equipment: Used in substations to provide electrical insulation and support for high-voltage components such as transformers, circuit breakers, and busbars, maintaining system integrity and safety.

HV single-piece insulator Key Features:

● One-Piece Construction: Crafted as a single, continuous unit to eliminate potential weak points and joints, enhancing reliability and reducing the risk of insulation failure or mechanical stress.

● Durable and Robust: Engineered to withstand harsh environmental conditions, including extreme temperatures, high humidity, UV exposure, and mechanical stresses, ensuring long-term reliability and performance.

HV single-piece insulator Specification：

Model	Drawing
