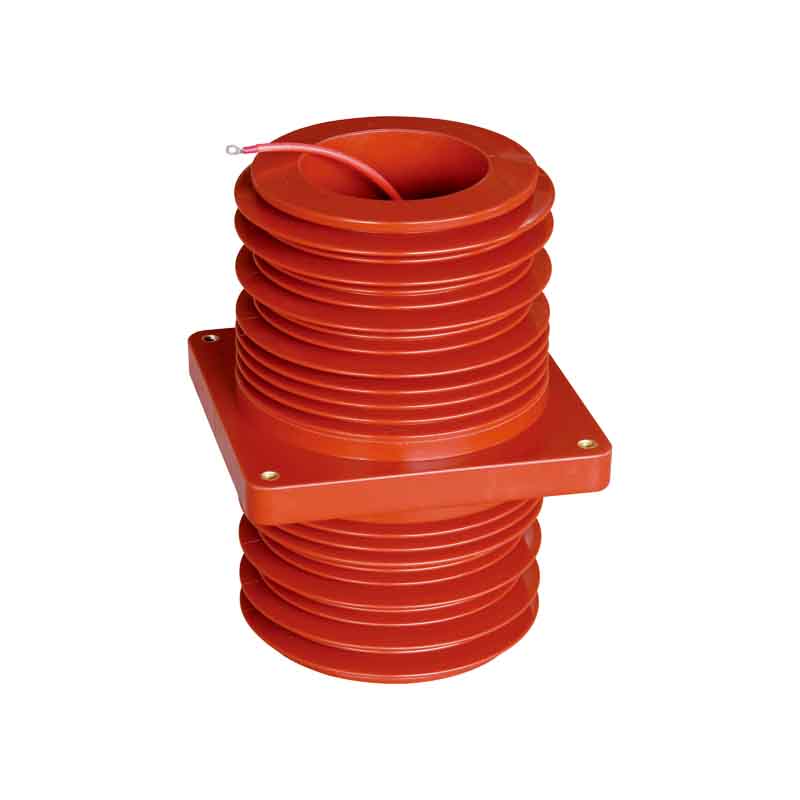

The High voltage insulating pipe is an essential component designed to facilitate the safe and reliable passage of high-voltage electrical conductors through walls, enclosures, or barriers. Engineered to handle high-voltage applications with exceptional insulation and mechanical support, this bushing ensures effective electrical isolation and protection while maintaining the integrity of the structural barrier. Their robust construction also allows them to endure various environmental factors, including extreme temperatures, humidity, and exposure to contaminants, ensuring long-term reliability and performance.
High voltage insulating pipe Applications:
● Power Distribution Systems: Ideal for use in power distribution networks where high-voltage conductors need to pass through walls, barriers, or enclosures, providing safe and effective electrical isolation.
● Substation Equipment: Used in substations to insulate and support high-voltage conductors as they pass through structural barriers, ensuring safe and reliable operation of electrical equipment.
High voltage insulating pipe Key Features:
● High Voltage Rating: Designed to accommodate high-voltage applications up to the specified voltage rating, providing reliable insulation and support for conductors passing through walls or enclosures.
● Robust Construction: Engineered to withstand mechanical forces, thermal stresses, and environmental conditions, ensuring long-term durability and performance in demanding applications.
High voltage insulating pipe Specification：
| Model | Drawing |
| TG-40.5Q/260x450P |
|
| TG-10.5Q/260x420P |
|
| TG-40.5Q/220x450P |
|
| TG-40.5Q/290x528P |
|
