Motorized Chassis

Main Applications:

Substations: In electrical substations, the D-DPC-800 Motorized Chassis is used to transport and position heavy switchgear, circuit breakers, and other equipment during installation, maintenance, and inspections. Its electric-powered design reduces the need for manual labor, improving safety and operational efficiency.

Industrial Facilities: The chassis car is ideal for moving electrical panels, machinery, and heavy components within manufacturing plants or large industrial complexes. It ensures the safe transportation of equipment across various sections of the facility, reducing the risk of equipment damage and minimizing downtime.

Power Plants and Utility Companies: The D-DPC-800 is used in power generation and distribution environments to move heavy electrical components like transformers and large control cabinets, ensuring efficient and safe handling during routine maintenance and equipment upgrades.

Key Functions:

Efficient Transportation: Powered by an electric motor, the D-DPC-800 provides smooth, controlled movement, making it easy to transport heavy equipment over short and long distances.

Enhanced Safety: The chassis car is equipped with safety features such as locking mechanisms and emergency stop controls to ensure the equipment remains securely in place during transport, minimizing the risk of accidents.

Durability and Stability: Built from high-strength materials, the D-DPC-800 is designed to withstand harsh industrial conditions, offering reliable performance even in demanding environments.

User-Friendly Operation: Its simple controls allow operators to maneuver the chassis car with ease, reducing the physical strain involved in moving heavy equipment and improving overall operational efficiency.

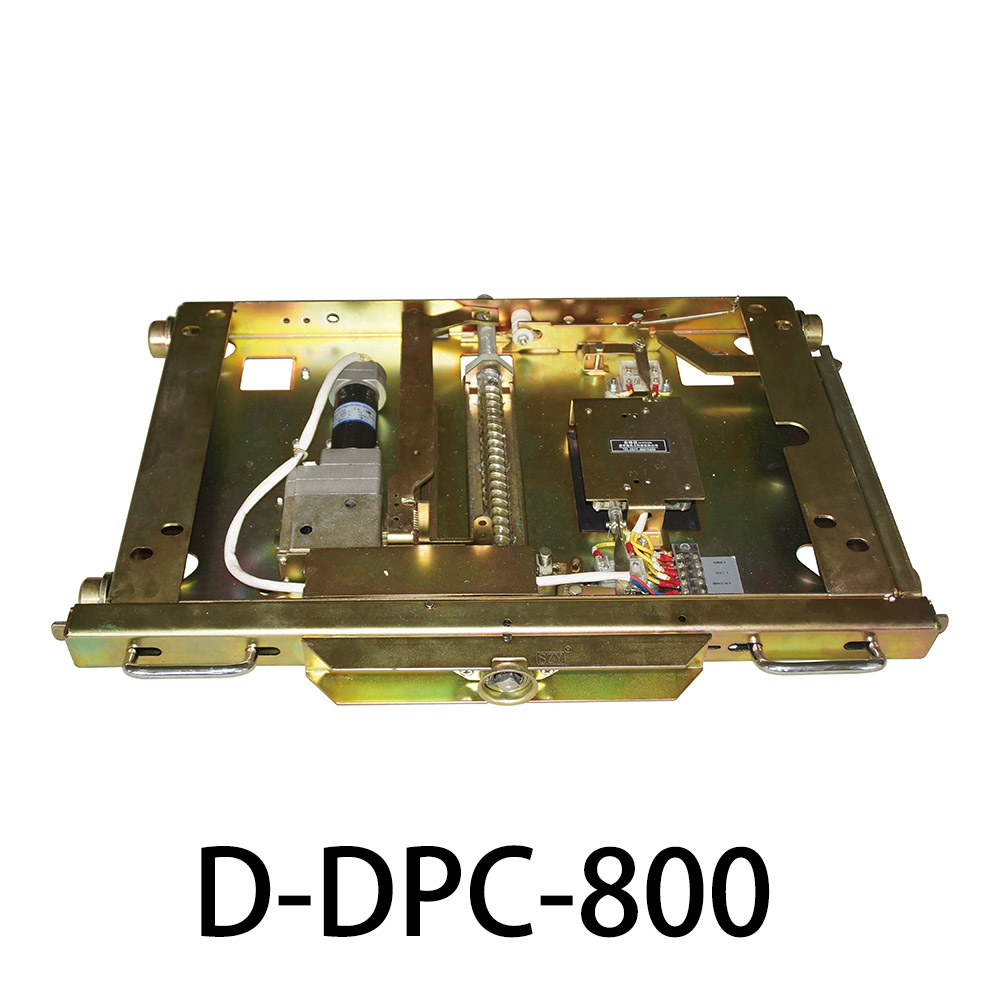

1.D-DPC-800  outline dimension

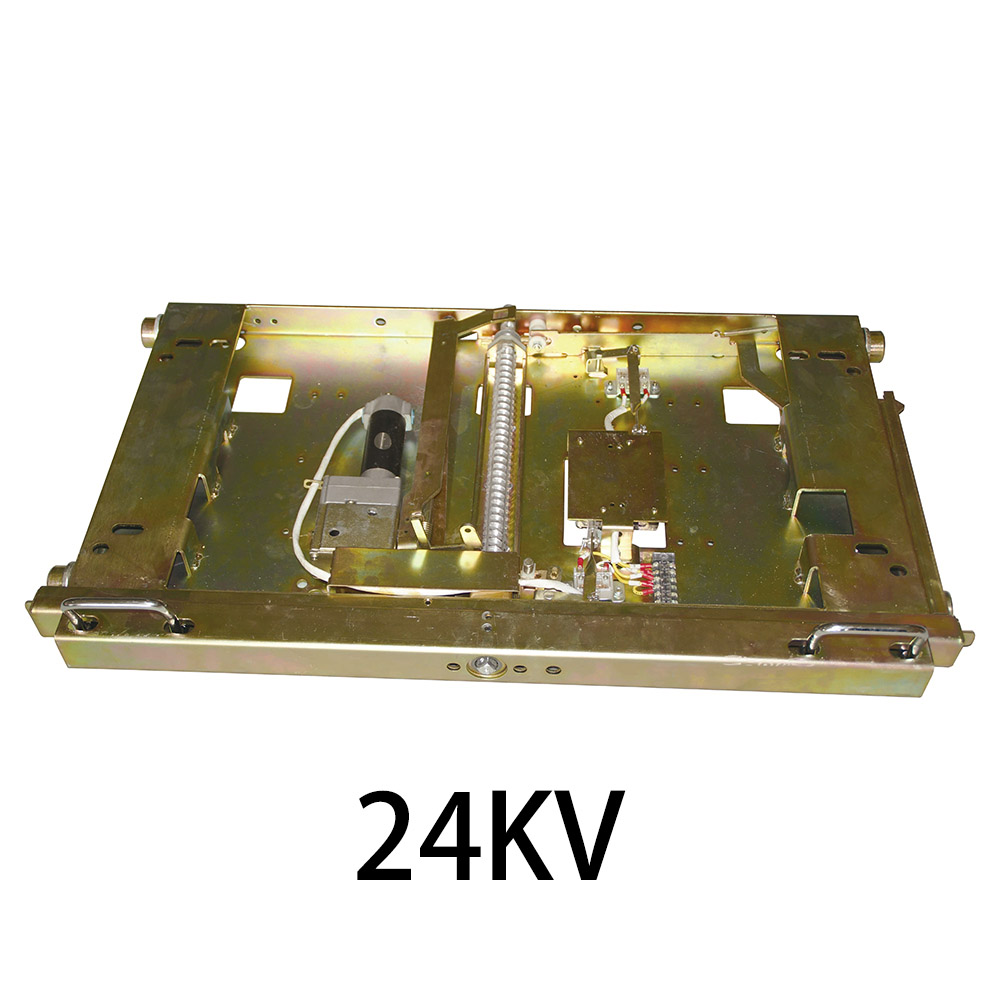

2.24KV outline dimension

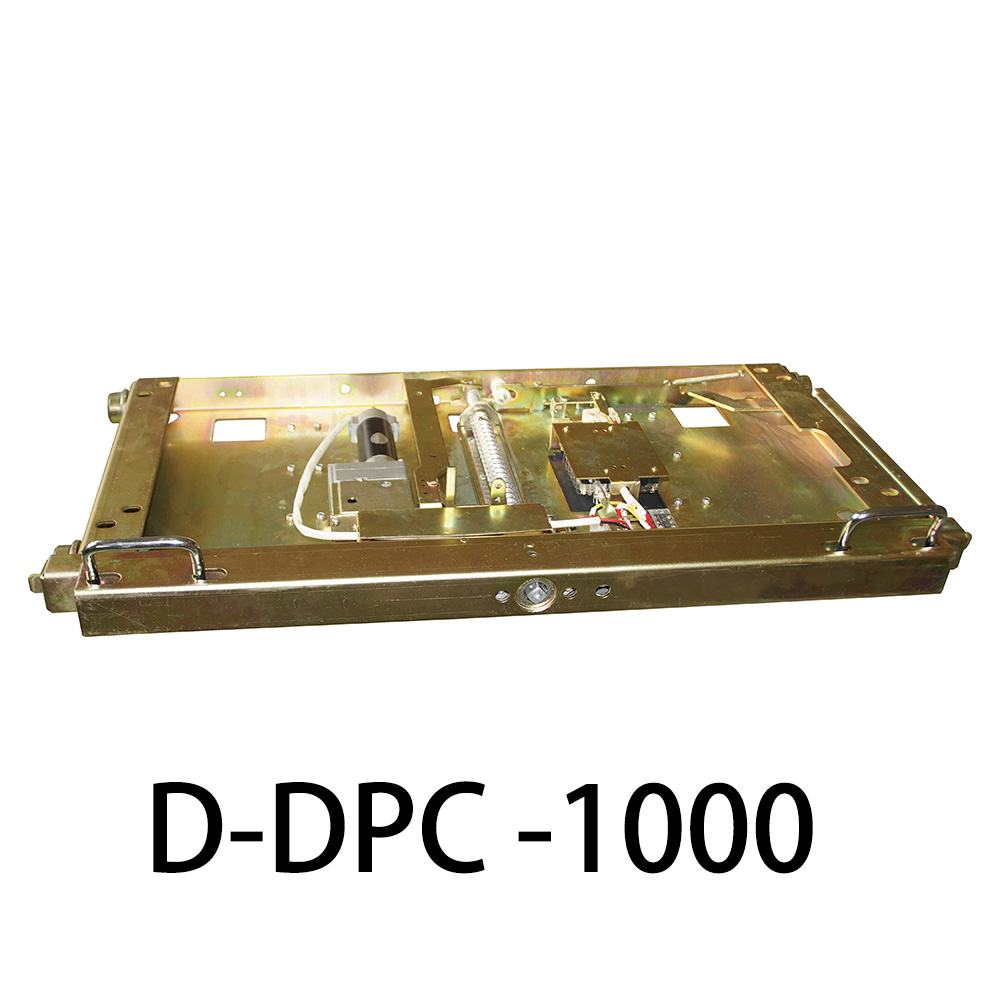

3.D-DPC-1000 outline dimension

• Main technical parameters

Rated voltage: DC220 or DC110

Motor Power: 200W

Access time: one-way 35S (12KV) 50S (24KV)

• Operation instruction

First of all, it must be checked according to the operation requirements of the manual chassis car, and then electric operation.The torque of hand cars moving in and out is usually <25N.m

1. Electric operation:

D-DPC-The electric chassis car only provides the transmission function, without any control and protection function.Therefore, the electric operation must be designed or choose the appropriate control loop to operate normally.At present, the company has two kinds of TRC-20-A1 guide rail installation and panel installation, connect the control circuit, and check whether the working position and test position switch is normal in the control module.Check that the handle position of the chassis car to the test position and the working position is correct, remove the handle, plug in the power, light the test position light of the control module, press the working position light of the control module.
