Switchgear Transition Bracket
  • Switchgear Transition BracketSwitchgear Transition Bracket

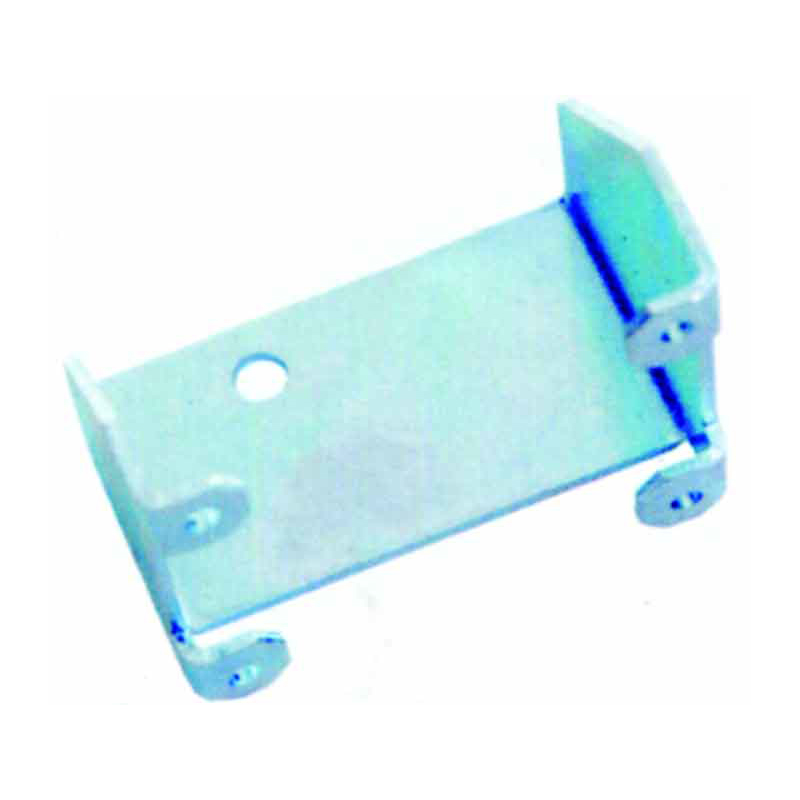

Switchgear Transition Bracket

Model:RQG-8PT6017(01)

Switchgear Transition Bracket: Product Details and Applications The Switchgear Transition Bracket is a key mechanical component used to ensure smooth alignment and structural integrity between two adjoining switchgear panels or sections. This bracket serves as a stabilizing connector, preventing misalignment issues during installation and operation. Made from high-strength materials such as galvanized steel or aluminum alloy, it offers durability, corrosion resistance, and the ability to withstand harsh environments, including industrial and utility settings. Designed for easy installation, the transition bracket is equipped with precision mounting holes that match standard switchgear configurations, ensuring a seamless fit between different panels or switchgear units. Some advanced models also feature adjustable slots for increased flexibility, making them ideal for retrofitting or modifications in older switchgear assemblies. In terms of performance, the transition bracket plays a crucial role in maintaining the switchgear's electrical clearance and mechanical stability. It ensures that components like busbars, cable trays, or enclosures remain properly aligned without gaps, which could otherwise cause stress points or hinder proper operation. The bracket can also absorb minor vibrations and mechanical shocks, contributing to the overall reliability and safety of the switchgear system.

Applications

Power Distribution Panels: Used to join adjacent switchgear sections in substations, providing a secure connection while maintaining alignment for optimal electrical performance.

Retrofit Projects: Facilitates the addition of new modules to existing switchgear without compromising the integrity of the setup.

Heavy Industrial Systems: Withstands high mechanical stress, ensuring durability in demanding environments like oil and gas plants or manufacturing facilities.

Modular Switchgear Systems: Supports modular designs, enabling easy disassembly or reconfiguration for maintenance or system upgrades.

The Switchgear Transition Bracket ensures reliable performance, long service life, and enhanced system efficiency, making it indispensable for maintaining smooth mechanical and electrical operations in critical power distribution networks.
