Switchgear with live door and dual plug-in

Product Features:

Live Door Technology:

The live door feature ensures that the door remains energized, while the switchgear components are insulated and fully protected. This is crucial for applications where real-time access to electrical systems is needed for maintenance, testing, or troubleshooting without compromising safety.

Dual Plug-in Connections:

Equipped with dual plug-in mechanisms, the switchgear allows for simultaneous, independent connection and disconnection of circuits. This makes it ideal for environments that require dual power feeds or redundancy, ensuring continuous operation and minimizing downtime in case of maintenance.

Modular Design:

The switchgear is designed with modularity in mind, offering scalable configurations. Users can expand or reconfigure the system to meet the growing demands of their electrical infrastructure, allowing for customization based on specific project requirements.

Safety Interlocks:

Interlocking mechanisms prevent any unintended operation or removal of parts while the switchgear is live, protecting both the operator and the equipment. These interlocks are in place to ensure that all electrical contacts are safely isolated before the plug-in units are removed or inserted.

High Durability:

Built with robust materials, this switchgear is engineered for harsh industrial environments. The components are resistant to wear and tear, ensuring a long lifespan even in high-demand conditions.

Compact and Efficient:

Despite its advanced features, the design of the switchgear is compact, allowing for efficient use of space in electrical rooms or control panels. Its layout facilitates easy installation and maintenance, with clear labeling for wiring and plug-in connections.

Applications:

Industrial Power Distribution:

This switchgear is ideal for large-scale industrial settings, such as manufacturing plants, refineries, and processing facilities, where the demand for reliable and secure electrical distribution is high. It supports both primary and secondary power systems.

Data Centers:

The live door and dual plug-in technology make it an excellent choice for data centers, where uptime and quick recovery from maintenance are crucial. With the ability to safely disconnect power without interrupting operations, it ensures a continuous flow of electricity to critical systems.

Power Generation and Transmission:

The system’s robust safety features and dual plug-in options are well-suited for power generation and transmission substations, offering seamless integration with other equipment and ensuring efficient power flow without compromising on safety.

Commercial and Residential High-rise Buildings:

In high-rise buildings and complex residential setups, the Switchgear with Live Door and Dual Plug-in offers reliable, modular, and safe electrical protection, meeting the needs of multi-story electrical systems.

Renewable Energy Systems:

For solar, wind, and other renewable energy installations, this switchgear provides flexible, safe, and easy-to-maintain solutions for energy distribution, contributing to the efficiency of green power solutions.

Conclusion:

The Switchgear with Live Door and Dual Plug-in represents the forefront of electrical distribution technology, offering a combination of safety, versatility, and durability. Its ability to provide live access and dual independent circuits makes it an invaluable solution for high-demand environments, ensuring smooth operations and robust power management.

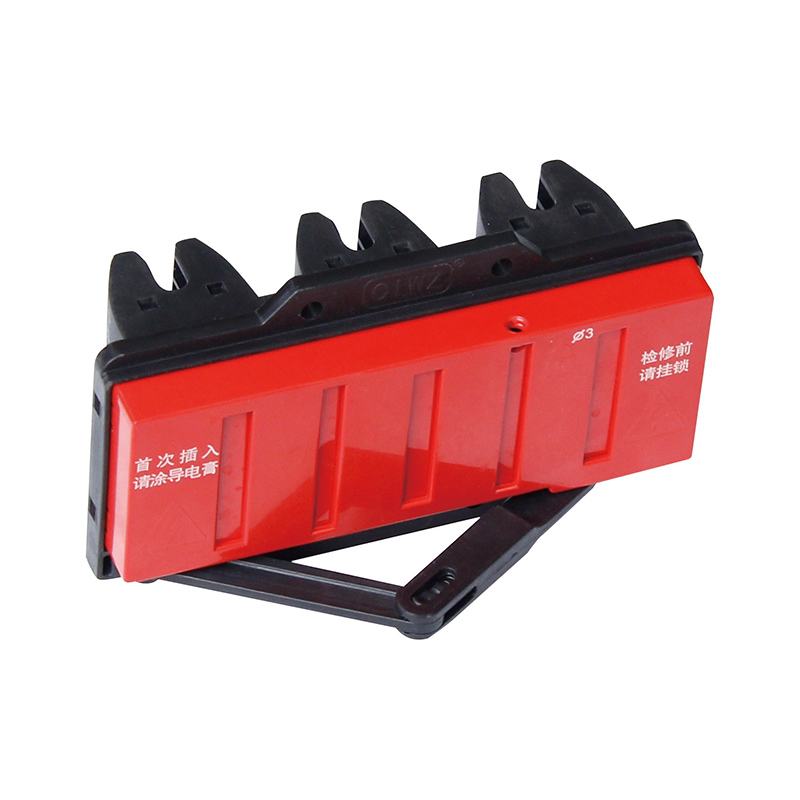

Primary double connector with valve

Code	Model No.	PIC
1011301	CJZ11-250A/3
1011302	CJZ11-400A/3
1011303	CJZ11-630A/3
