Tulip contact

The main features of the JRD-S Switchgear heating system produced by Richge Company are:

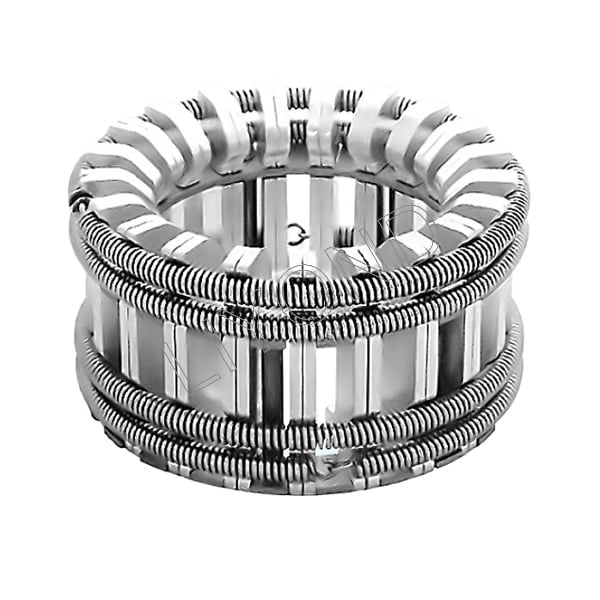

The structure of Tulip Contact produced by Richge:

Contact sheet: A multi-piece elastic metal contact sheet consists of a highly conductive copper alloy, with a silver or gold plated surface, arranged like tulip petals, with good electrical conductivity and oxidation resistance.

Elastic mechanism: The internal spring system provides uniform clamping force to the contact plate, ensuring contact reliability and shock resistance.

The main features and advantages of Tulip Contact produced by Richge Company:

The Tulip Contact from Richge is highly conductive: using high-quality materials, it reduces resistance and increases transmission efficiency

Tulip Contact Elastic design produced by Richge Company: the two edges of the inner circle and the circular conductor form a line contact piece, the elastic contact piece has a certain mechanical compensation ability, to adapt to the small size error of the plug or bus.

The Tulip Contact produced by Richge has strong stability: simple structure and fast disconnection speed. A stable electrical connection is maintained even in high vibration or shock environments

The Tulip Contact produced by Richge is easy to plug and pull: the bounce of the contact is very small when connected, and the short circuit current expired touch is also very stable. Suitable for frequent insertion and removal operations, easy maintenance and replacement.

The Tulip Contact produced by Richge is highly conductive: through the design of multiple contact plates, the current load is distributed and the low contact resistance ensures the minimum power transmission loss.

The Tulip Contact manufactured by Richge is easy to maintain: modular design using CNC machining and precision stamping processes, compact structure for easy cleaning and replacement.

Tulip Contact Self-cleaning function from Richge: The micro-motion friction of the contact plate automatically removes oxidation or dirt from the contact surface during insertion and removal.

Richge Tulip Contact Durability: up to tens of thousands of plug and unplug life under high loads.

Tulip Contact maintenance and maintenance produced by Richge

Regular inspection: Clean surface oxide or dirt to ensure electrical conductivity.

Clean the surface: Use a non-corrosive cleaner to remove dirt or oxides from the contact surface.

Lubrication and protection: Use conductive grease to reduce friction and oxidation of contact surfaces.

Replacement cycle: When the contact resistance exceeds the design standard or the elastic contact plate is seriously worn, replace the component
