Indoor Electrical Ground Switch
  • Indoor Electrical Ground SwitchIndoor Electrical Ground Switch

Indoor Electrical Ground Switch

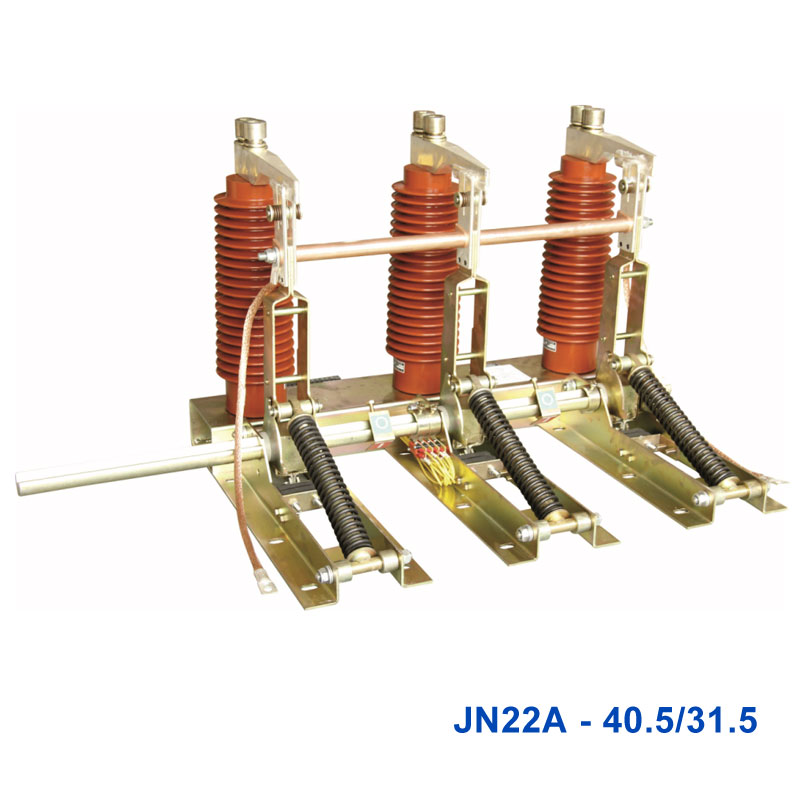

Model:JN22A - 40.5/31.5

The Indoor Electrical Ground Switch is a vital safety device in high-voltage power systems, designed to facilitate the grounding and isolation of electrical equipment during maintenance operations. It operates effectively at voltage levels between 12kV and 40.5kV, showcasing robust short-circuit withstand capabilities and reliable mechanical functionality. With its compact design, it ensures straightforward installation and user-friendly operation, making it suitable for high-voltage switchgear and substations. Compliant with rigorous international standards, this grounding switch provides consistent safety and performance in demanding electrical conditions.

main application

The Indoor Electrical Ground Switch is used in substations, power plants, and industrial electrical systems to safely ground electrical circuits during maintenance, testing, or repairs. Its main function is to provide a secure path for discharging any residual electrical energy from high-voltage equipment, ensuring a safe working environment for technicians.

In substations, the ground switch is used to ground switchgear, transformers, and circuit breakers before any maintenance or inspection work takes place. This prevents the risk of electric shock and equipment damage. In power plants, it is used to safely isolate and ground sections of the power grid, allowing maintenance crews to work on equipment without the danger of residual voltage or accidental energization.

The Indoor Electrical Ground Switch is designed for reliable operation in indoor settings, with insulation capable of withstanding high-voltage conditions. It typically features safety mechanisms like clear grounding status indicators and interlocks to prevent accidental operation, ensuring safe and efficient grounding during maintenance or emergency work.


The Indoor Electrical Ground Switch is an internationally advanced product developed by advanced technology, whose structure is assembly. After comprehensive assessment, the performance meets the requirements of GB1985-2004 AC high voltage isolating switch and grounding switch and IEC62271-102:2002, which is applicable to 3-12KV three-phase AC 50Hz power system; it has short-circuit off-off capability to protect other electrical equipment in the switchgear from damage, and can be used with various high voltage switchgear, or as grounding protection during maintenance of high voltage electrical equipment.



Use environmental conditions

1. The altitude shall not exceed 1000m;

2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;

3. the earthquake intensity does not exceed 8 degrees;

4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;

5. filth grade:11。




INDOOR HIGH VOLTAGE EARTHING SWITCH




Model No. and Description



JN22A-40.5/31.5 Ground switch shape and installation size


ordering instruction

1. When ordering the grounding switch, indicate the product model, distance and whether equipped with is equipped (and indicate the display model).

2. Users should indicate the upper and lower positions of the timely moving and static contacts when the earth switch is installed in the cabinet.

3. If users have special requirements, please contact our company.
