Switchgear Remote Control Panel
  • Switchgear Remote Control PanelSwitchgear Remote Control Panel

Switchgear Remote Control Panel

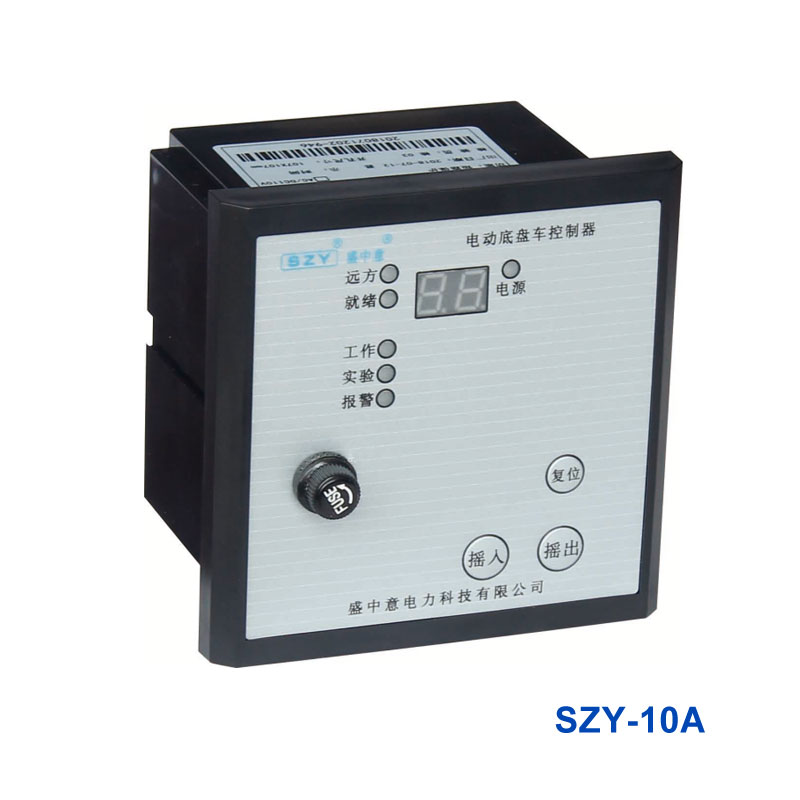

Model:SZY-10A

The Switchgear Remote Control Panel is an integral component designed for the operation and control of switchgear systems. This controller facilitates the smooth maneuvering of the switchgear trolley, allowing for efficient and safe handling of electrical panels during installation and maintenance. Featuring a user-friendly interface, the controller allows operators to easily manage various functions, such as movement, locking, and unlocking of the trolley, ensuring secure positioning of the switchgear. It is built with robust materials to withstand the rigors of high-voltage environments, while also providing reliable performance and durability. Compatible with a range of switchgear configurations, the panel trolley controller is essential for optimizing workflow and enhancing safety in electrical substations and industrial settings. Its design adheres to international safety standards, making it a trusted choice for professionals in the electrical industry.

main application

The Switchgear Remote Control Panel is used in substations, power plants, and industrial electrical systems to remotely operate and control switchgear components, such as circuit breakers, disconnectors, and load switches. Its primary function is to provide operators with the ability to manage high-voltage equipment from a safe distance, reducing the need for manual intervention and enhancing safety and operational efficiency.

In substations, the remote control panel is used to operate and monitor the status of switchgear without requiring operators to be physically present at the switchgear location. This is particularly important in hazardous or hard-to-reach areas, where direct access to equipment may pose safety risks. In power plants, the panel enables centralized control of multiple switchgear units, allowing operators to efficiently manage power distribution and grid stability.

The remote control panel typically integrates features such as real-time status monitoring, fault detection, and remote operation of electrical equipment. It may also include alarms and safety interlocks to ensure safe operation and prevent accidents. Designed for user-friendly operation, the panel provides clear indications of the equipment’s status and allows for remote troubleshooting and diagnostics, minimizing downtime and improving system reliability. The use of a remote control panel enhances operational safety, reduces human error, and ensures faster response times during emergency situations.




elementary diagram

Main technical parameters

Voltage power supply: AC / DC110V, AC / DC220V
Output contact: 5A, AC250V, or DC30V
Power frequency voltage resistance: AC2.5KV/1min
Temperature of the working environment: -20℃ ~ + 50℃
Rated power of the motor load is less than 300W, DC110V DC220V
Power consumption: <5W
Protection level: IP20
Installation method: card slot type installation, hole size 91mmx91mm
