The Indoor High Voltage Grounding Switch is a critical safety component in high-voltage systems, designed to disconnect and ground electrical equipment during maintenance, ensuring operator and equipment safety. Suitable for voltage levels from 12kV to 40.5kV, it offers robust short-circuit resistance and stable mechanical performance. Its streamlined design allows for easy installation and smooth operation, making it well-suited for use in high-voltage switchgear and electrical substations. Engineered to meet international safety and performance standards, this grounding switch delivers reliable protection in various power system applications.

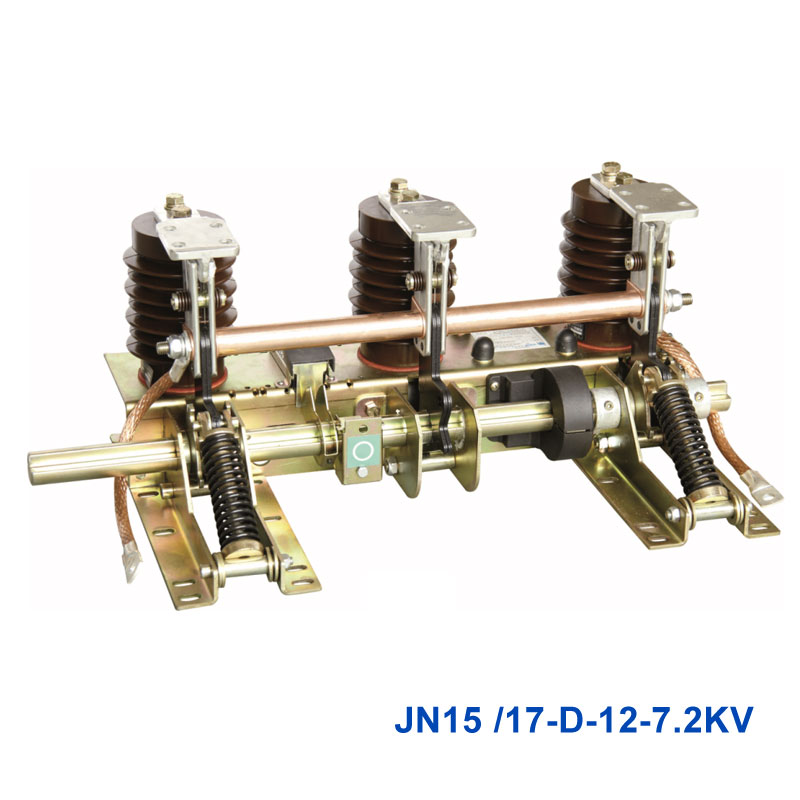

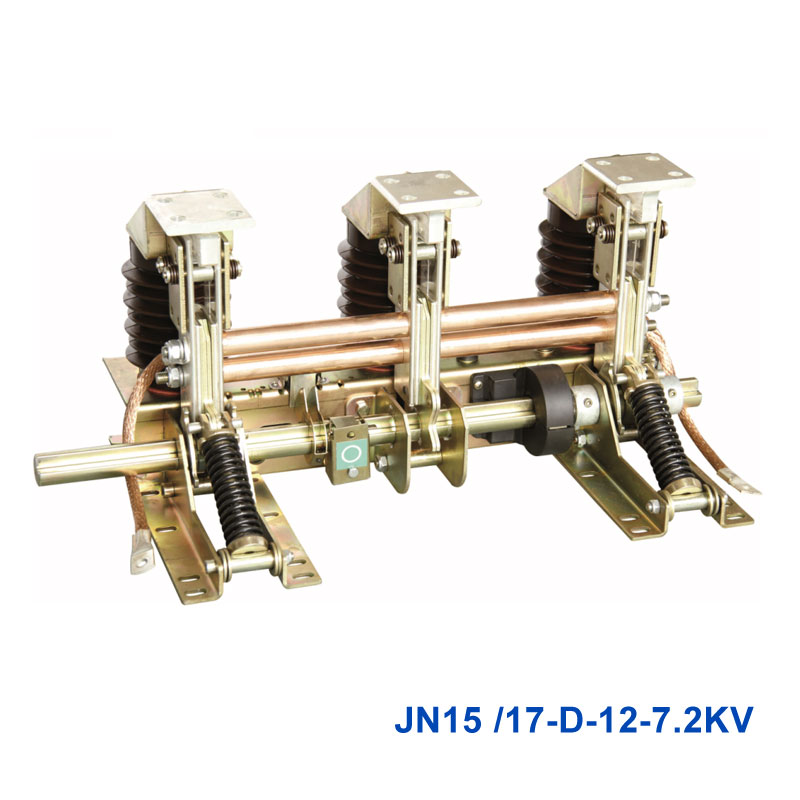

JNI5-D-12-7.2/31.5, JN17-D-12-7.2/40,50 series Indoor High Voltage Grounding Switch (hereinafter referred to as grounding switch) is a new type of grounding switch designed and developed by our company according to the market needs. It is suitable for indoor 3~24KV three-phase AC 50 (60) Hz power system and various types of high voltage switchgear, and can also be used as system grounding during the maintenance of high voltage electrical equipment. And can be used in an unattended and intelligent substation. The product meets the national standard GB1985-2004 "AC high voltage isolation switch and grounding switch" and IEC6227-102-2002. The grounding switch structure is simple and compact, light weight, flexible operation, convenient installation, good dynamic and thermal stability, and reliable electric operation, keep the original middle type switch cabinet chain unchanged, has obtained the national patent. Because the grounding switch is electric operation, the manual operation chain on the middle cabinet is consistent with the original style, but some parts have been modified. Be sure to use the supporting chain parts, otherwise the motor of the electric grounding switch will be burned. If the back door of the middle cabinet needs to be linked with the electric grounding switch, it is also necessary to use the back door interlocking mechanism produced by the company's patented technology, and equipped with the stroke switch. When the back door is not closed, cut off the operating power supply of the electric grounding switch, so as to avoid the motor damage caused by the misoperation of the electric grounding switch. When conducting the electrical linkage with the electric grounding switch, be sure to use the auxiliary contact of the associated coupling element to disconnect the operating power supply of the electric grounding switch and realize the electrical linkage.To ensure the reliability of the electrical chain.
JNI5-D-12-7.2/31.5, JN17-D-12-7.2/40,50 series indoor high voltage electric grounding switch (hereinafter referred to as grounding switch) is a new type of grounding switch designed and developed by our company according to the market needs. It is suitable for indoor 3~24KV three-phase AC 50 (60) Hz power system and various types of high voltage switchgear, and can also be used as system grounding during the maintenance of high voltage electrical equipment.
And can be used in an unattended and intelligent substation. The product meets the national standard GB1985-2004 "AC high voltage isolation switch and grounding switch" and IEC6227-102-2002. The grounding switch structure is simple and compact, light weight, flexible operation, convenient installation, good dynamic and thermal stability, and reliable electric operation, keep the original middle type switch cabinet chain unchanged, has obtained the national patent. Because the grounding switch is electric operation, the manual operation chain on the middle cabinet is consistent with the original style, but some parts have been modified. Be sure to use the supporting chain parts, otherwise the motor of the electric grounding switch will be burned. If the back door of the middle cabinet needs to be linked with the electric grounding switch, it is also necessary to use the back door interlocking mechanism produced by the company's patented technology, and equipped with the stroke switch. When the back door is not closed, cut off the operating power supply of the electric grounding switch, so as to avoid the motor damage caused by the misoperation of the electric grounding switch. When conducting the electrical linkage with the electric grounding switch, be sure to use the auxiliary contact of the associated coupling element to disconnect the operating power supply of the electric grounding switch and realize the electrical linkage.To ensure the reliability of the electrical chain.
Use environmental conditions
1. The altitude shall not exceed 1000m;
2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;
3. the earthquake intensity does not exceed 8 degrees;
4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;
5. filth grade:11。
INDOOR HIGH VOLTAGE EARTHING SWITCH
Model No. and Description
Main technical parameters
Main technical parameters
unit
data
rated voltage
KV
12
Rated short-time withstand current
KA
31.5
Rated short-circuit duration
S
80
Rated short-circuit switch-off current
KA
80
Rated peak withstand current
KA
42
Rated insulation level
Power frequency withstand voltage is 1min
KV
Extreme to ground and alternate
75
Lightning peak withstand voltage
125
mechanical life
Times
AC/DC220V DC110V
JN15 /17-D-12-7.2Ground switch shape and installation size
JN15-D-12/31.5 KA JD17-D-12/40KA
JN17-D-12/50KA
Supporting table
model NO
Phase spacing A
Support B
principal axis C
pitch-row D
Plateau type ratio sensor height E
JNI 5-12 (7.2) / 31.5-150
150
424
535
396
JNI 5-12 (7.2) / 31.5-165
165
454
565
426
145, below 1,000 m 170, below 2,000 m 185, below 3,000 m 210, below 4,000 m
JNI 5-12 (7.2) / 31.5-210
210
544
655
516
JNI 5-12 (7.2) / 31.5-250
250
624
735
596
JNI 5-12 (7.2) / 31.5-275
275
674
785
646
model NO
Phase spacing A
Support B
principal axis C
pitch-row D
Plateau type ratio sensor height E
JN17-D-12/40-150
150
424
535
396
145, below 1,000 m 170, below 2,000 m 185, below 3,000 m 210, below 4,000 m
JN17-D-12/40-165
165
454
565
426
JN17-D-12/40-210
210
544
655
516
JN17-D-12/40-250
250
624
735
596
JN17-D-12/40-275
275
674
785
646
model N0
Phase spacing A
Support B
principal axis C
pitch-row D
Plateau type ratio sensor height E
JN17-D-12/50-210
210
544
655
516
145, below 1,000 m 170, below 2,000 m 185, below 3,000 m 210, below 4,000 m
JN17-D-12/50-250
250
624
735
596
JN17-D-12/50-275
275
674
785
646
ordering instruction
1. When ordering the grounding switch, indicate the product model, distance and whether equipped with is equipped (and indicate the display model).
2. Users should indicate the upper and lower positions of the timely moving and static contacts when the earth switch is installed in the cabinet.
3. If users have special requirements, please contact our company.
