Indoor High-Voltage Switchgear Ground Switch
  • Indoor High-Voltage Switchgear Ground SwitchIndoor High-Voltage Switchgear Ground Switch

Indoor High-Voltage Switchgear Ground Switch

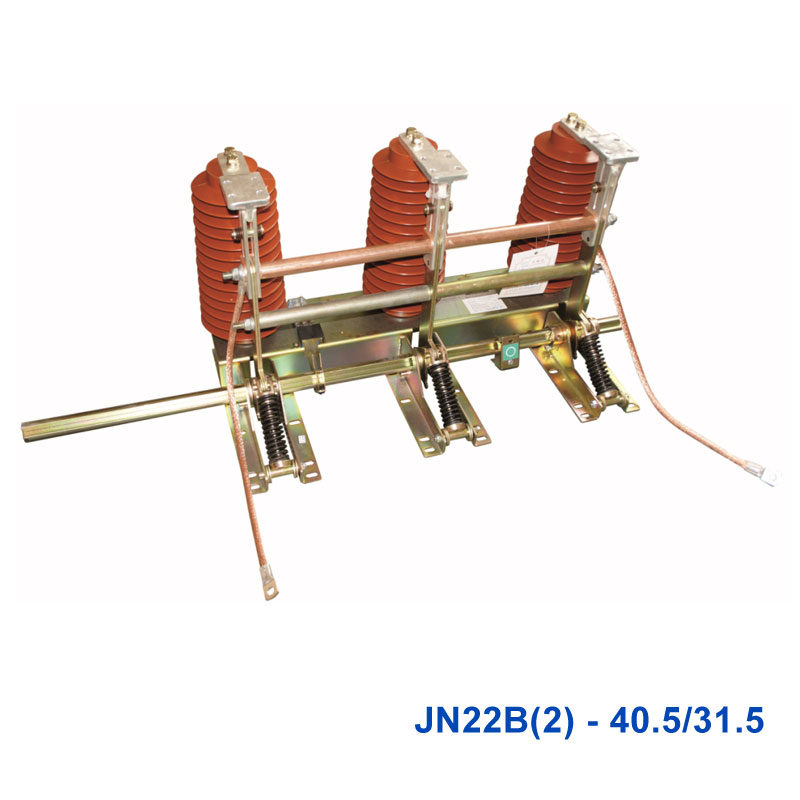

Model:JN22B(2) - 40.5/31.5

The Indoor High-Voltage Switchgear Ground Switch is a critical safety device designed for use in high-voltage electrical systems, ensuring safe grounding and isolation of equipment during maintenance and servicing. Suitable for voltage ranges from 12kV to 40.5kV, it provides exceptional resistance to short-circuit conditions and delivers reliable mechanical operation. Its compact and efficient design simplifies installation and ensures ease of use, making it an ideal choice for integration in high-voltage switchgear and substations. This grounding switch adheres to international standards, guaranteeing safe and stable performance in complex electrical networks.

main application

The Indoor High-Voltage Switchgear Ground Switch is used in substations, power plants, and industrial electrical systems to safely ground high-voltage switchgear during maintenance, repairs, or testing. Its primary function is to provide a secure path for discharging any residual electrical energy from high-voltage equipment, ensuring the safety of technicians and preventing electrical hazards.

In substations, the ground switch is employed to isolate and ground high-voltage components like circuit breakers, transformers, and isolators before any maintenance work begins. This prevents the risk of electric shock and equipment damage during servicing. In power plants, it ensures that electrical systems are properly grounded when isolating parts of the power grid or other high-voltage equipment for maintenance, upgrades, or emergency repairs.

The Indoor High-Voltage Switchgear Ground Switch is designed for reliable, fast operation in indoor environments. It is equipped with safety features such as clear grounding status indicators, interlocking mechanisms, and manual or automatic operation, ensuring the switchgear is safely grounded and that work can proceed without the risk of electrical accidents.

The Indoor High-Voltage Switchgear Ground Switch is an internationally advanced product developed by advanced technology, whose structure is assembly. After comprehensive assessment, the performance meets the requirements of GB1985-2004 AC high voltage isolating switch and grounding switch and IEC62271-102:2002, which is applicable to 3-12KV three-phase AC 50Hz power system; it has short-circuit off-off capability to protect other electrical equipment in the switchgear from damage, and can be used with various high voltage switchgear, or as grounding protection during maintenance of high voltage electrical equipment.




Use environmental conditions

1. The altitude shall not exceed 1000m;

2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;

3. the earthquake intensity does not exceed 8 degrees;

4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;

5. filth grade:11。



INDOOR HIGH VOLTAGE EARTHING SWITCH



Model No. and Description



JN22B(2)-40.5/31.5 Ground switch shape and installation size


Supporting table

product prototype Phase spacing A F principal axis L Plateau type ratio sensor height E
JN22B(2)-40.5/31.5-280 280 290 1010
JN22B(2)-40.5/31.5-300 300 340 1100 320~340, below 1,000 m
360, below 2,000 m
380, below 3,000 m
JN22B(2)-40.5/31.5-350 350 340 1200
JN22B(2)-40.5/31.5-360 360 320 1200
JN22B(2)-40.5/31.5-400 400 340 1300


ordering instruction

1. When ordering the grounding switch, indicate the product model, distance and whether equipped with is equipped (and indicate the display model).

2. Users should indicate the upper and lower positions of the timely moving and static contacts when the earth switch is installed in the cabinet.

3. If users have special requirements, please contact our company.
