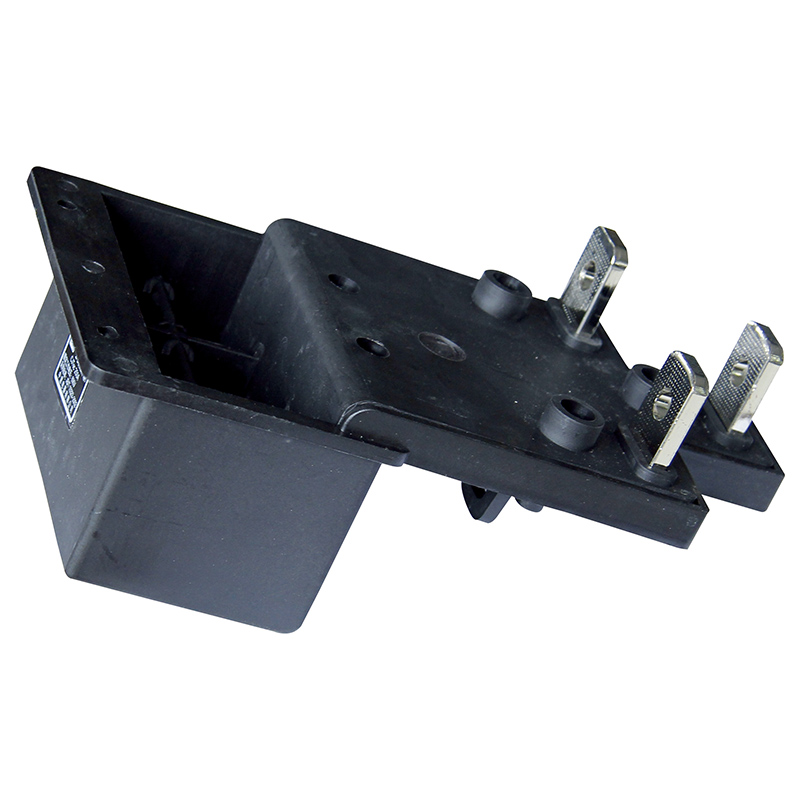

Switchgear Primary Connector

Model:RQG-1011304 1011305 1011306

Switchgear Primary Connector – Product Details and Applications The Switchgear Primary Plug-in Unit is a crucial component in modern electrical switchgear systems, designed to provide seamless connectivity and reliable power distribution in high-voltage applications. This unit is engineered to facilitate the easy and secure integration of electrical circuits into switchgear assemblies, ensuring optimal performance and safety in electrical grids, substations, and industrial power systems. Product Details: The primary plug-in unit is typically designed with a three-phase configuration and is equipped with high-quality conductors that allow it to handle large amounts of electrical current efficiently. The unit consists of a robust housing that provides protection against electrical faults and external impacts. It features secure connectors, high-insulation materials, and enhanced safety features such as anti-arc protection, ensuring the integrity of both the unit and the overall system. A key feature of the primary plug-in unit is its easy-to-install, maintenance-free operation, making it ideal for applications requiring frequent component swaps or upgrades. Constructed with durability in mind, the unit is also designed to withstand extreme environmental conditions, offering resistance to corrosion, heat, and mechanical stress. It can be configured to fit different types of switchgear enclosures, providing versatility for various designs.


Key Features:

High-Current Capacity: Switchgear Primary Connector Designed to support high-power applications with a robust current-carrying capacity.

Enhanced Safety: Equipped with anti-arc and short-circuit protection mechanisms.

Reliable Insulation: High dielectric strength insulation to minimize electrical hazards.

Modular Design: Compatible with various switchgear models, offering flexible installation options.

Maintenance-Free: Low-maintenance requirements, ensuring cost efficiency and reducing downtime.

Applications: Switchgear primary plug-in units are predominantly used in:

1.Substations: To connect transformers and circuit breakers, ensuring safe power distribution.

2.Power Plants: As part of the electrical distribution system, supporting efficient energy flow.

3.Industrial Electrical Systems: Used in factories, manufacturing plants, and other industrial environments to manage and control electrical power.

4.Renewable Energy Facilities: Critical in wind farms and solar power installations for reliable power distribution and grid integration.

These units play an integral role in enhancing the operational efficiency, safety, and reliability of electrical infrastructure. The ease of installation and replacement also reduces the need for specialized labor, contributing to lower maintenance costs and enhanced system uptime.

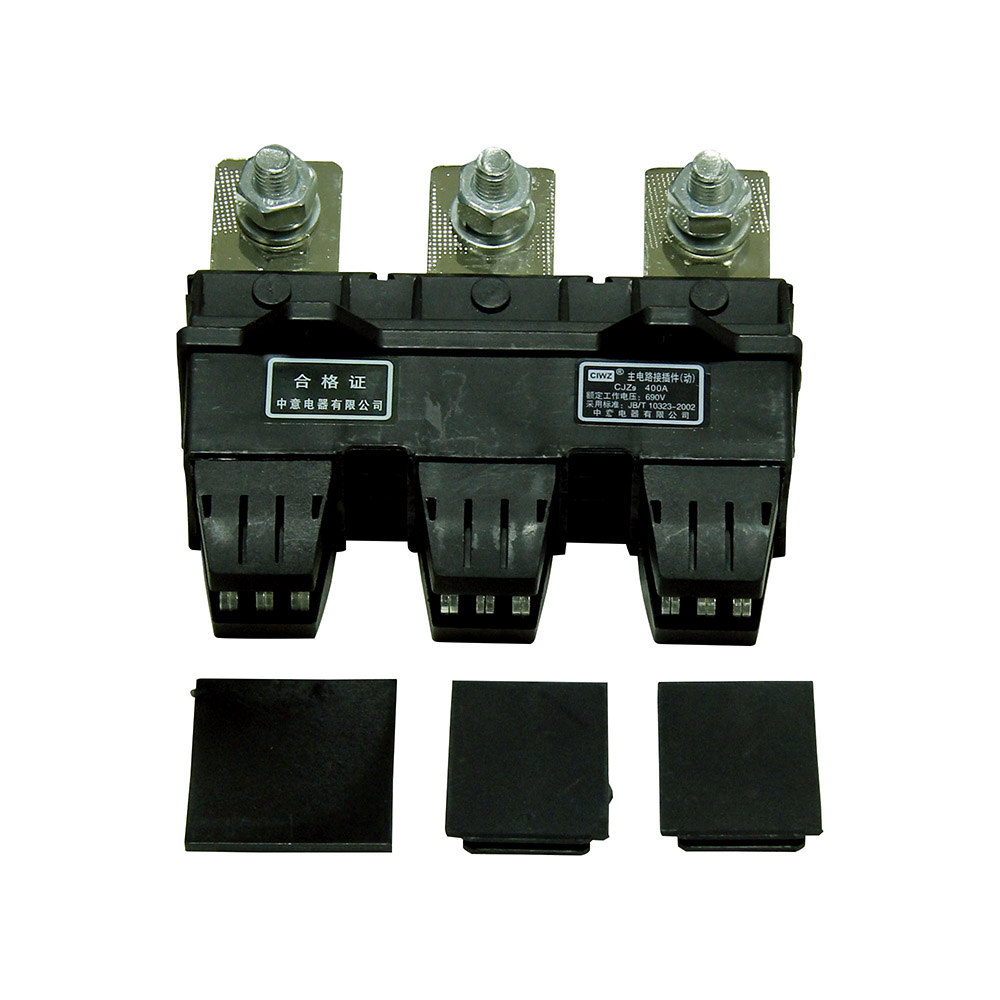

Primary connector




Code





Model No.



PIC

1011205

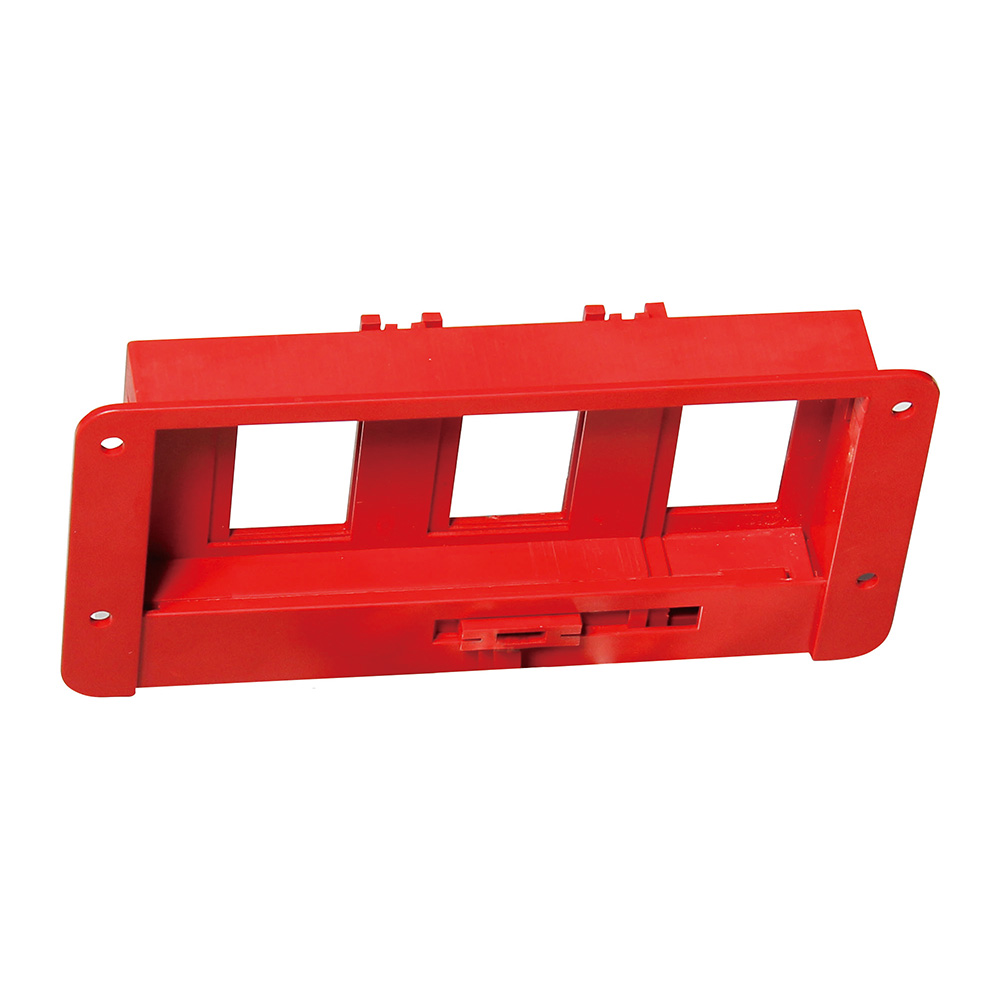

IP40 Shutter





1010801




CJZ9-125A/3

1010802




CJZ9-250A/3

1010803




CJZ9-400A/3

1010804




CJT9C-125A/3

1010805




CJT9C-250A/3



1010806




CJT9C-400A/3


Factory


Certificate
