Switchgear self-locking device

Applications and Functions

Prevent misoperation: When the device is disconnected or isolated, the self-locking device of the device can prevent it from being re-closed without a clear intention to operate.

Ensure safety: It can prevent the wrong closing or disconnecting of the equipment due to mechanical failure or operation error, and avoid electrical failure and equipment damage.

Reliability: The self-locking device plays an important role in the operation of the equipment, ensuring that the state of the switch is consistent with the operating conditions.

Compliance with standards: Self-locking devices usually comply with international electrical standards (such as IEC standards) and can be compatible with existing automation systems, improving the overall safety of the equipment.

Switchgear self-locking device Applications:

● Switchgear Assemblies: Ideal for use in 12kV switchgear panels where reliable shutter mechanisms are essential for protecting and managing high-voltage components.

● Industrial Electrical Systems: Suitable for industrial environments requiring robust and dependable shutter mechanisms to ensure safe and efficient operation of electrical switchgear.

● Utility Infrastructure: Perfect for utility installations where high-quality shutter mechanisms are critical for maintaining the performance and safety of electrical networks.

Why Choose RichgeSwitchgear self-locking device?

Richge 12KV shutter mechanism provides exceptional safety, durability, and ease of use for managing high-voltage switchgear systems. With its robust construction, reliable operation, and advanced safety features, it ensures secure and efficient operation in critical electrical environments.

Schematic diagram of assembly

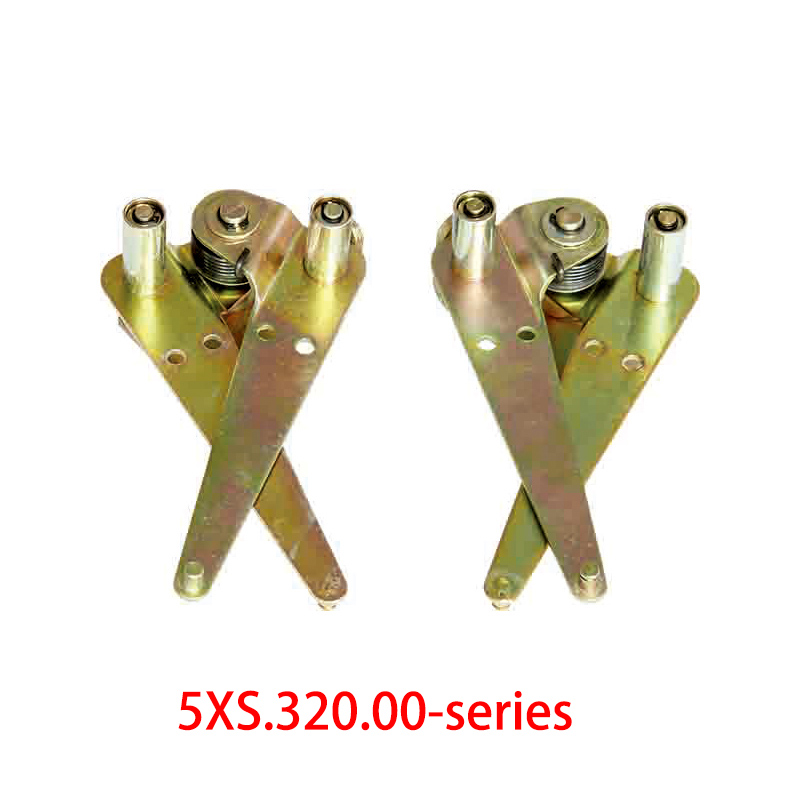

5XS.320.010	Shutter mechanism（800mm  Centrally Installed Switchgear）

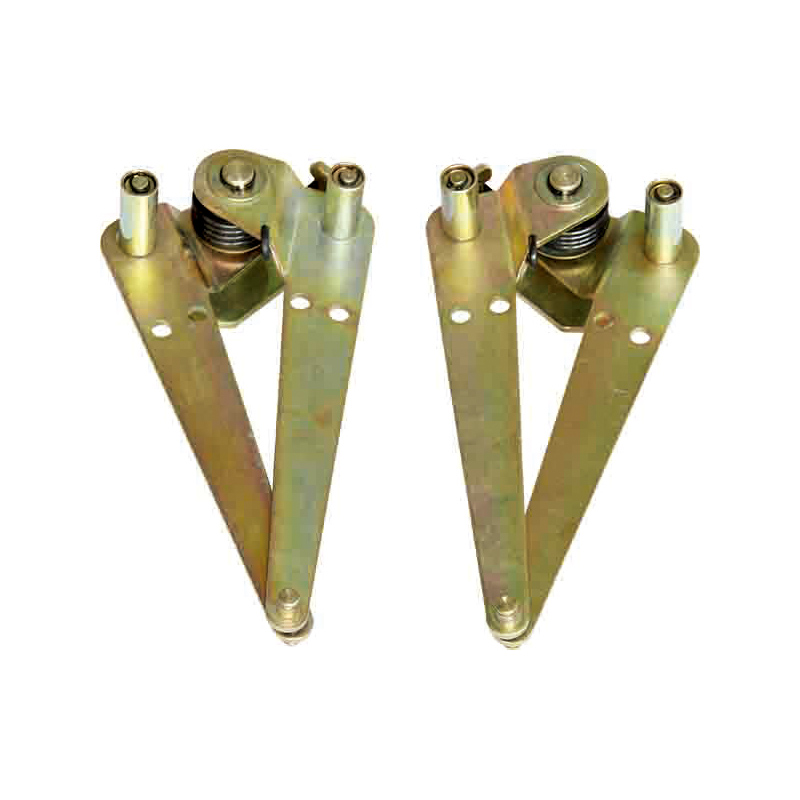

5XS.320.011	Shutter mechanism（1000mm  Centrally Installed Switchgear）

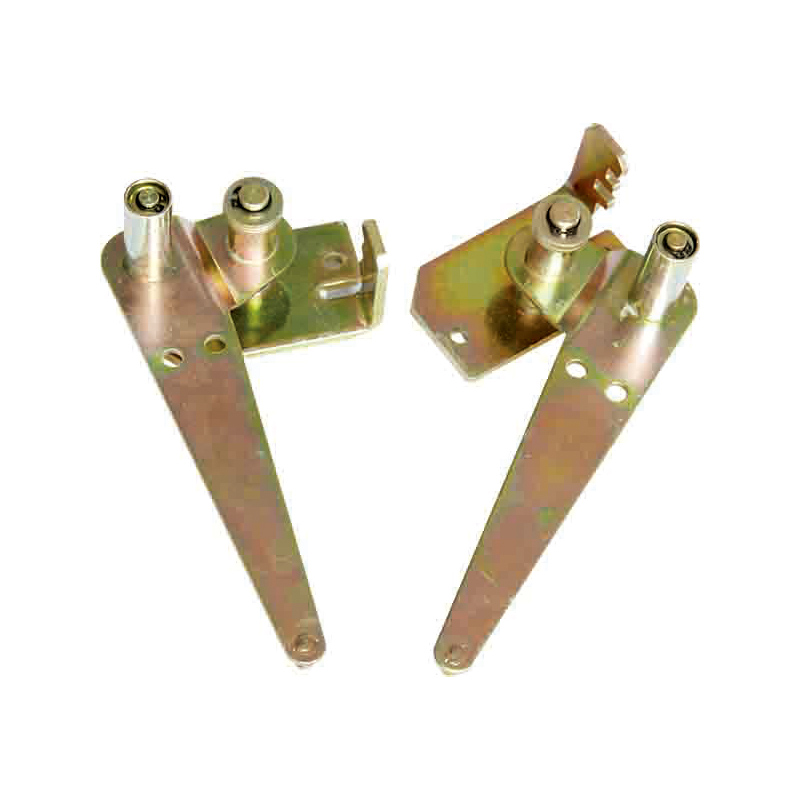

5XS.320.012/5XS.320.012.1	Upper shutter mechanism（800mm /1000mm  Centrally Installed Switchgear）
5XS.320.013	Upper shutter mechanism（800mm   Centrally Installed Switchgear）For 2nd generation switchgear
5XS.320.014	Upper shutter mechanism（1000mm   Centrally Installed Switchgear）For 2nd generation switchgear

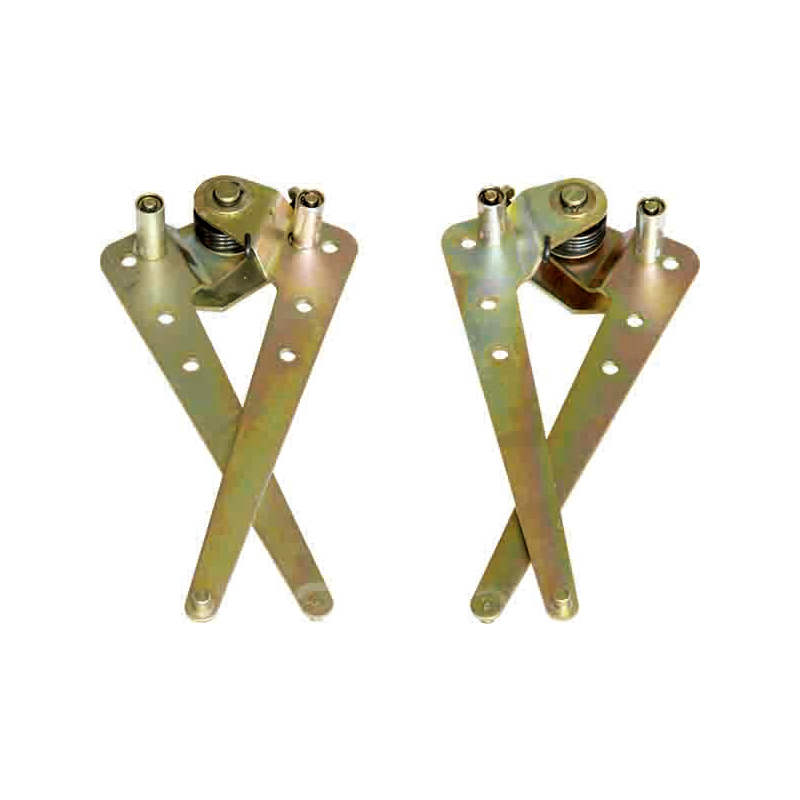

5XS.320.011-24	Shutter mechanism（1000mm  Centrally Installed Switchgear）

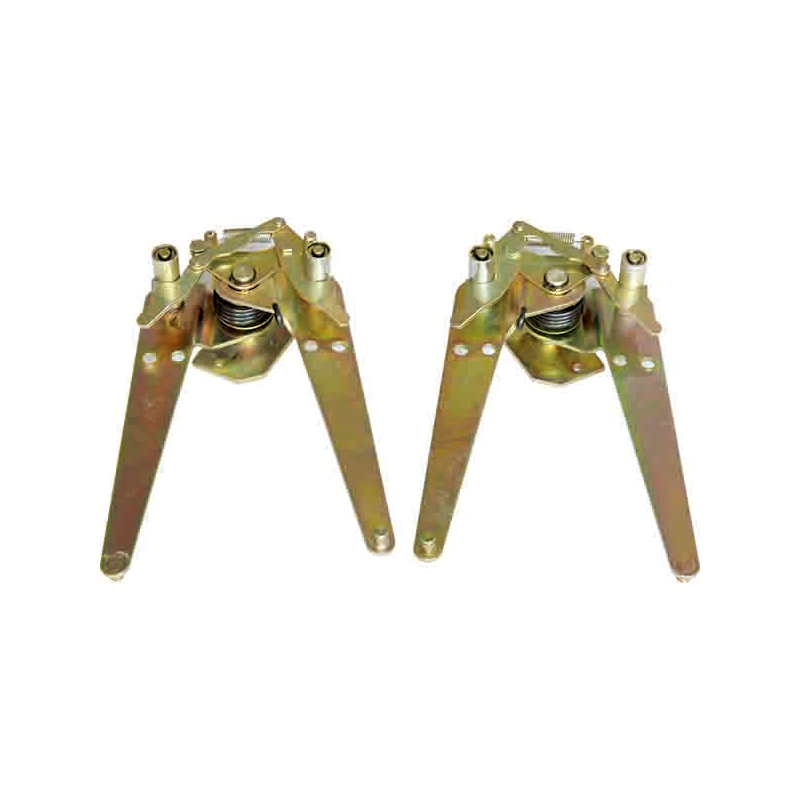

5XS.320.010/ZS	The shutter mechanism locks itself

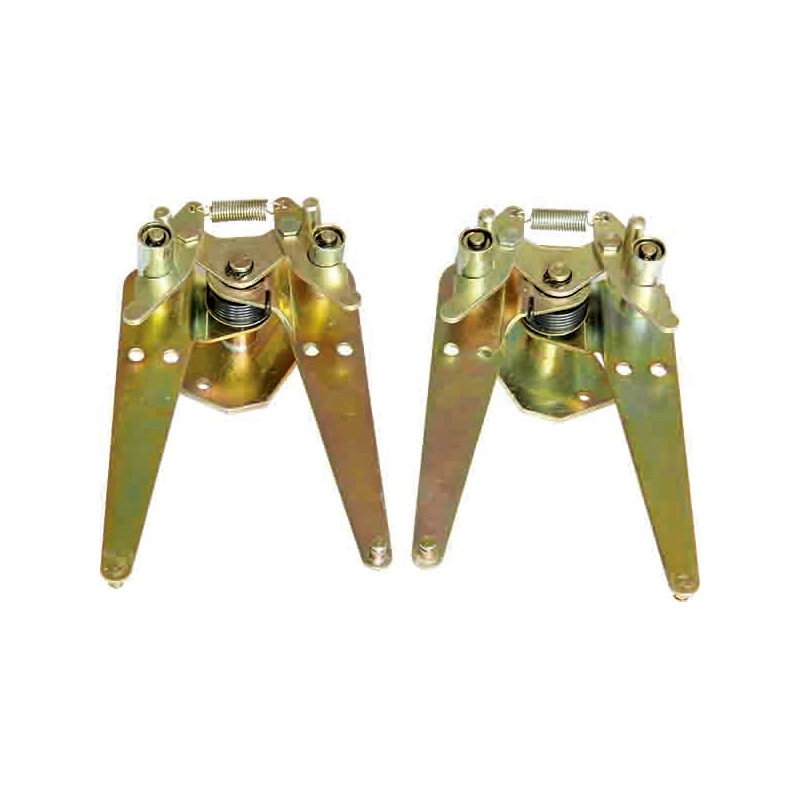

5XS.320.010.1/ZS	The shutter mechanism locks itself For 2nd generation switchgear
5XS.320.011/ZS	The shutter mechanism locks itself
5XS.320.011.1/ZS	The shutter mechanism locks itself For 2nd generation switchgear
