AC Ground Switch for Switchgear
  • AC Ground Switch for SwitchgearAC Ground Switch for Switchgear

AC Ground Switch for Switchgear

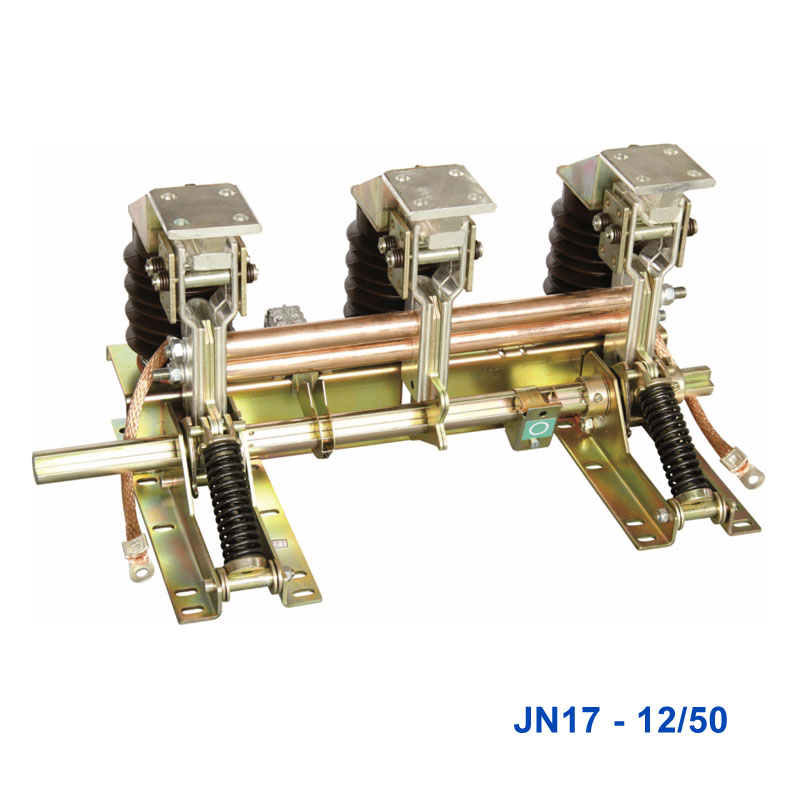

Model:JN17 - 12/50

The AC Ground Switch for Switchgear is an essential safety device in high-voltage power systems, providing a secure means to ground and isolate electrical equipment during maintenance activities. Operating within voltage ranges of 12kV to 40.5kV, it features outstanding short-circuit current resistance and reliable mechanical functionality. Its compact design facilitates easy installation and flexible operation, making it suitable for various high-voltage switchgear applications and substations. Built to meet rigorous international standards, this grounding switch ensures consistent safety and reliability in demanding electrical settings.

main application

The AC Ground Switch for Switchgear is used in substations, power plants, and industrial electrical systems to safely ground switchgear during maintenance or repair. Its primary function is to connect high-voltage components, such as circuit breakers or disconnectors, to the ground, ensuring that any residual electrical energy is safely dissipated before work begins.

In substations, the AC Ground Switch is used to ground switchgear when isolating equipment for routine inspections, repairs, or upgrades. This prevents electrical shock hazards and ensures safe working conditions for maintenance personnel. In power plants, it helps to safely discharge energy from high-voltage systems when isolating parts of the power grid for maintenance or emergency procedures.

The AC Ground Switch is designed for reliable, fast operation and is built to withstand high-voltage conditions. It includes safety features like clear grounding status indicators and interlocking mechanisms to prevent accidental operation, ensuring that the switchgear is safely grounded during maintenance or testing activities.


AC Ground switch is an internationally advanced product developed by advanced technology, whose structure is assembly.

After comprehensive assessment, the performance meets the requirements of GB1985-2004 AC high voltage isolating switch and grounding switch and IEC62271-102:2002, which is applicable to 3-12KV three-phase AC 50Hz power system; it has short-circuit off-off capability to protect other electrical equipment in the switchgear from damage, and can be used with various high voltage switchgear, or as grounding protection during maintenance of high voltage electrical equipment.



Use environmental conditions

1. The altitude shall not exceed 1000m;

2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;

3. the earthquake intensity does not exceed 8 degrees;

4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;

5. filth grade:11。


INDOOR HIGH VOLTAGE EARTHING SWITCH


Model No. and Description



Main technical parameters

Main technical parameters unit data
rated voltage KV 12
Rated short-time withstand current KA 50
Rated short-circuit duration S 2
Rated short-circuit switch-off current KA 125
Rated peak withstand current KA 125
Rated insulation level Power frequency withstand voltage is 1min KV Extreme to ground and alternate 42
Lightning peak withstand voltage 75
mechanical life Times 3000


JNI7-12/50 Ground switch shape and installation size

Supporting table

product prototype Phase spacing A Support B principal axis C pitch-row D Plateau type ratio sensor height E
J N 17 - 12/50-210 210 544 655 516 140, below 1,000 m 170, below 2,000 m 185, below 3,000 m 210, below 4,000 m
J N 17 - 12/50-250 250 624 735 596
J N 17 - 12/50-275 275 674 785 646


ordering instruction

1. When ordering the grounding switch, indicate the product model, distance and whether equipped with is equipped (and indicate the display model).

2. Users should indicate the upper and lower positions of the timely moving and static contacts when the earth switch is installed in the cabinet.

3. If users have special requirements, please contact our company.
