AC Grounding Switch for High Voltage
  • AC Grounding Switch for High VoltageAC Grounding Switch for High Voltage

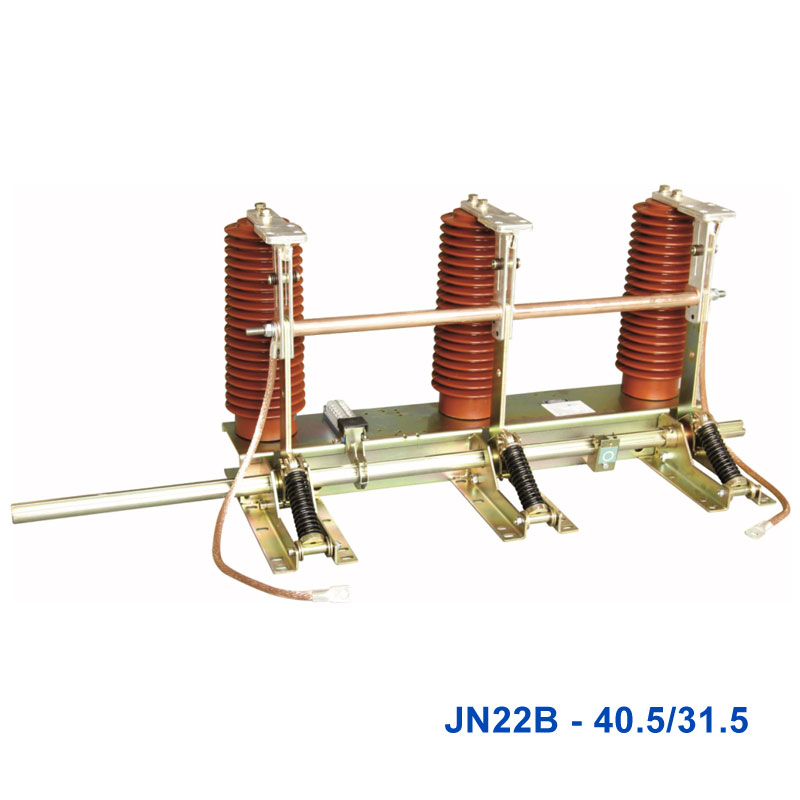

AC Grounding Switch for High Voltage

Model:JN22B - 40.5/31.5

The AC Grounding Switch for High Voltage is a key component in electrical systems, designed to safely ground and isolate high-voltage equipment during service or repair. It is typically used in voltage applications from 12kV to 40.5kV and offers excellent short-circuit resistance and consistent mechanical reliability. Its compact design ensures easy installation and smooth operation, making it ideal for use in high-voltage switchgear and electrical substations. Built to meet the highest international standards, this grounding switch guarantees reliable protection and safety in even the most demanding power environments.

main application

The AC Grounding Switch for High Voltage is used in substations, power plants, and industrial electrical systems to safely ground high-voltage circuits during maintenance, repairs, or testing. Its main function is to provide a reliable path for discharging residual electrical energy from high-voltage equipment, ensuring the safety of personnel and equipment during maintenance activities.

In substations, the grounding switch is employed to isolate and ground high-voltage components such as circuit breakers, transformers, and switchgear, protecting maintenance workers from electrical shock hazards. In power plants, it ensures that sections of the electrical grid or power distribution systems are safely grounded before performing maintenance, preventing accidents related to residual voltage or inadvertent energization.

The AC Grounding Switch is built to handle high-voltage environments and is equipped with safety features such as clear indication of grounding status and interlocking mechanisms to prevent accidental operation. It ensures safe, fast, and reliable grounding, improving safety and operational efficiency during maintenance, repair, or emergency situations.

The AC grounding switch is an internationally advanced product developed by advanced technology, whose structure is assembly. After comprehensive assessment, the performance meets the requirements of GB1985-2004 AC high voltage isolating switch and grounding switch and IEC62271-102:2002, which is applicable to 3-12KV three-phase AC 50Hz power system; it has short-circuit off-off capability to protect other electrical equipment in the switchgear from damage, and can be used with various high voltage switchgear, or as grounding protection during maintenance of high voltage electrical equipment.




Use environmental conditions

1. The altitude shall not exceed 1000m;

2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;

3. the earthquake intensity does not exceed 8 degrees;

4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;

5. filth grade:11。



INDOOR HIGH VOLTAGE EARTHING SWITCH




Model No. and Description



JN22B-40.5/31.5 Ground switch shape and installation size


Supporting table

product prototype Phase spacing A F principal axis L Plateau type ratio sensor height E
JN22B-40.5/31.5-280 280 29 1010
JN22B-40.5/31.5-300 300 340 1100 340, below 1,000 m 360, below 2,000 m
380, below 3,000 m
JN22B-40.5/31.5-350 350 340 1200
JN22B-40.5/31.5-360 360 320 1200
JN22B-40.5/31.5-400 400 340 1300


ordering instruction

1. When ordering the grounding switch, indicate the product model, distance and whether equipped with is equipped (and indicate the display model).

2. Users should indicate the upper and lower positions of the timely moving and static contacts when the earth switch is installed in the cabinet.

3. If users have special requirements, please contact our company.
