High-Voltage AC Switch for Grounding

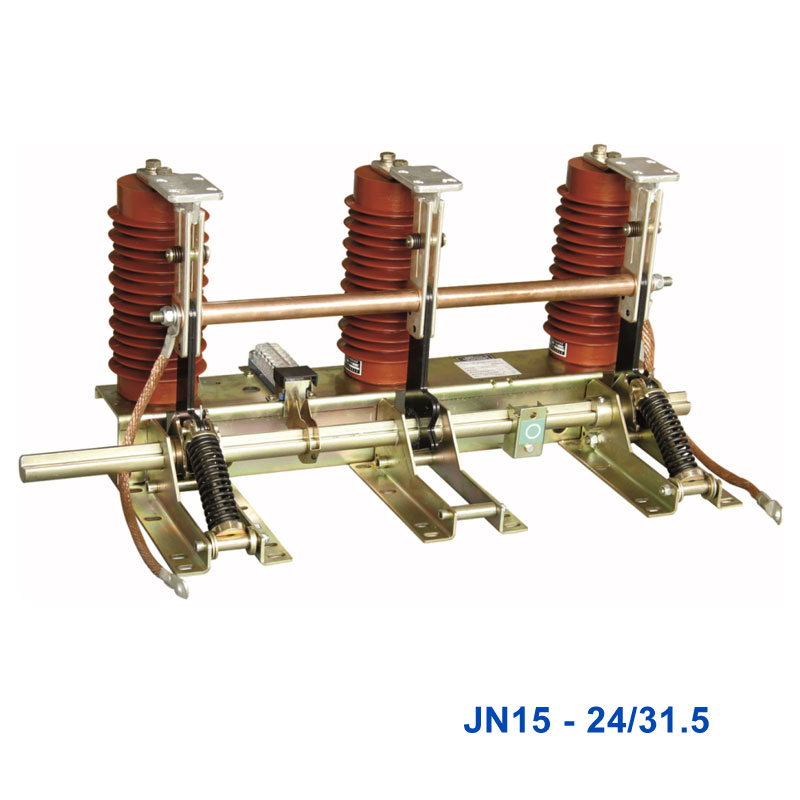

Model:JN15 - 24/31.5

The High-Voltage AC Switch for Grounding is a vital safety device in high-voltage power systems, designed to facilitate the grounding and isolation of electrical equipment during maintenance operations. It operates effectively at voltage levels between 12kV and 40.5kV, showcasing robust short-circuit withstand capabilities and reliable mechanical functionality. With its compact design, it ensures straightforward installation and user-friendly operation, making it suitable for high-voltage switchgear and substations. Compliant with rigorous international standards, this grounding switch provides consistent safety and performance in demanding electrical conditions.

main application

The High-Voltage AC Switch for Grounding is used in substations, power plants, and electrical distribution systems to safely ground high-voltage circuits during maintenance, repairs, or testing. Its primary function is to provide a secure grounding path for high-voltage equipment, ensuring that any residual electrical energy is safely dissipated before work begins, protecting personnel and equipment.

In substations, the switch is employed to ground switchgear, transformers, or circuit breakers before maintenance or inspections, preventing electrical shock hazards and ensuring safe working conditions. In power plants, it is used to safely isolate and ground parts of the power grid, ensuring that maintenance crews can work on equipment without the risk of electrical accidents.

The High-Voltage AC Switch for Grounding is built to handle high-voltage conditions and is equipped with safety features like grounding status indicators, interlocking mechanisms, and manual or automatic operation. These features ensure the switch operates reliably and safely in demanding environments, enhancing overall safety and operational efficiency during maintenance activities.


The high-voltage AC switch is an internationally advanced product developed by advanced technology, whose structure is assembly. After comprehensive assessment, the performance meets the requirements of GB1985-2004 AC high voltage isolating switch and grounding switch and IEC62271-102:2002, which is applicable to 3-12KV three-phase AC 50Hz power system; it has short-circuit off-off capability to protect other electrical equipment in the switchgear from damage, and can be used with various high voltage switchgear, or as grounding protection during maintenance of high voltage electrical equipment.



Use environmental conditions

1. The altitude shall not exceed 1000m;

2. Surrounding air temperature: upper limit + 40℃, lower limit-25℃;

3. the earthquake intensity does not exceed 8 degrees;

4. The daily average relative humidity shall not be greater than 95%, and the monthly average shall not be greater than 90%;

5. filth grade:11。



INDOOR HIGH VOLTAGE EARTHING SWITCH

Model No. and Description



Main technical parameters

Main technical parameters unit data
rated voltage KV 24
Rated short-time withstand current KA 31.5
Rated short-circuit duration S 4
Rated short-circuit switch-off current KA 80
Rated peak withstand current KA 80
Rated insulation level Power frequency withstand voltage is 1min KV Extreme to ground and alternate 65
Lightning peak withstand voltage 125
mechanical life Times 2000


JN15 - 24/31.5 Ground switch shape and installation size

Supporting table

product prototype Phase spacing A Support B principal axis C pitch-row D sensor height E
J N 15 - 24/31.5-210 210 544 655 516 225~240
J N 15 - 24/31.5-275 275 674 785 646


Factory


Certificate
